1000 Series 230V 1-3kVA

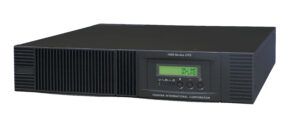

Toshiba_UPS_1000_Series_UPS_1kVA_Rack_FrontL3Q_HR

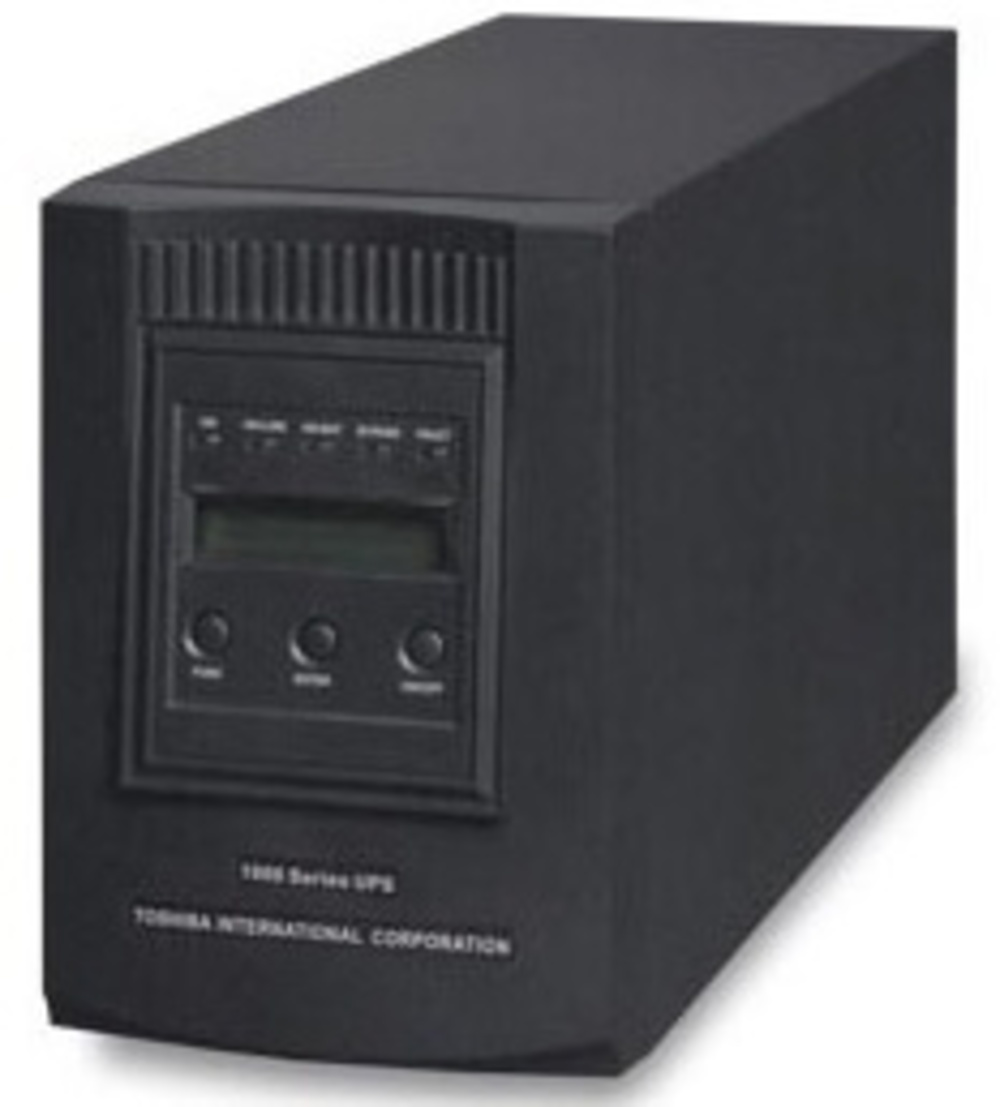

Toshiba_UPS_1000_Series_UPS_1kVA_Tower_FrontL3Q_LR-21-new
Toshiba_UPS_1000_Series_UPS_1kVA_Rack_FrontL3Q_HR
Toshiba_UPS_1000_Series_UPS_1kVA_Tower_FrontL3Q_LR-21-new
Toshiba_UPS_1000_Series_UPS_1kVA_Tower_FrontL3Q_LR-21-new
Toshiba_UPS_1000_Series_UPS_1kVA_Tower_FrontL3Q_LR-21-new

The 1000 Series single-phase UPS, available in 1.5, 2.4, and 3kVA, offers double-conversion, true online protection in tower and rack mount designs. It features auto-restart, cold start, programmable load shed receptacle, and rapid charging to 90% in 4 hours. With a wide input voltage and frequency window for generator compatibility, it achieves an input power factor >0.97 and output power factors of 0.70 or 0.8 (for 2.4 kVA). Optional upgrades include the RemotEye® II Network Interface Card and an Environmental Monitoring Device, making it ideal for industrial systems, healthcare, small offices, ISPs, and datacenters.

Overview

Key Features:

  • Auto-Restart and Cold Start
  • Programmable Load Shed Receptacle
  • Intelligent Charger with Rapid Charge in only 4.0 hours to 90%
  • Wide Input Voltage Window
  • Wide Input Freq Window for Comp Generator Compatibility
  • Input Power Factor > 0.97
  • Output Power Factor 0.70 (0.8 pf for 2.4 kVA)
  • LCD Display in Multiple Languages
  • Optional Network Interface Card – RemotEye® II
  • Optional Environmental Monitoring Device

Insulated Bearings

  • An electric motor operating on an adjustable speed drive is at risk for premature bearing failure caused by stray currents. Experience indicates using insulated bearings on both ends of the motors is the most effective way to protect the motor from destructive currents. A high level of bearing protection is especially beneficial in applications where motor maintenance and replacement are difficult.

    • Extended Horsepower Capability

  • Extended horsepower capability allows a smaller motor to run at a higher horsepower than its baseline depending on the application requirements. This provides motor users potential cost savings while achieving the same motor performance.

    • Insulation with Wide Thermal Capability

  • Critical cooling motors utilize many Class H insulation materials in its winding designs, which provides increased thermal protection. These motors operate with a very low temperature rise at rated conditions, giving them a wide thermal margin and extended motor life.

    • Low Vibration

  • A vibration level exceeding NEMA MG1 requirements provides stability and durability by prolonging motor and bearing life and helping to reduce downtime.

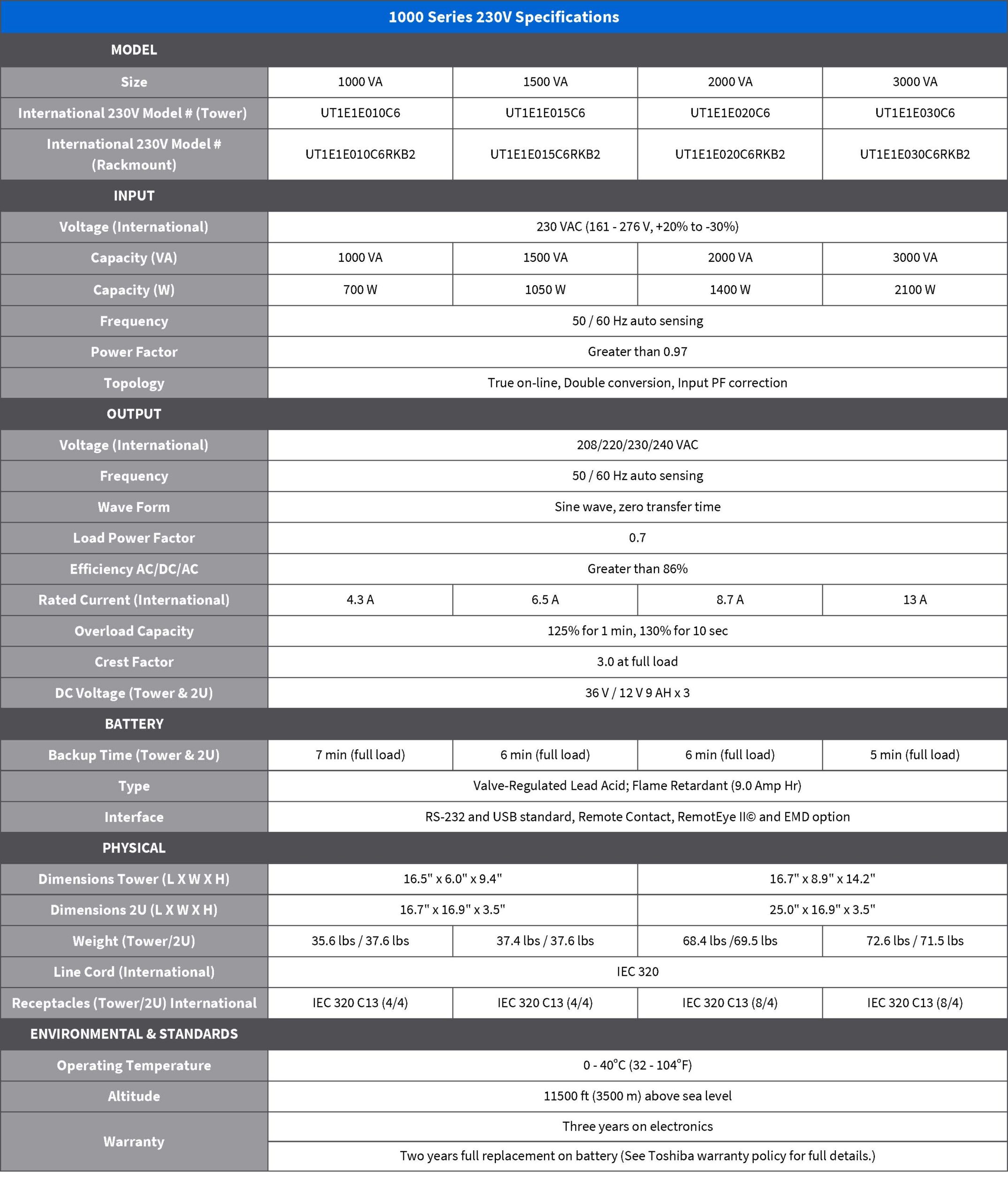

    • Specifications
