EQP Global Explosion Proof

Toshiba's Explosion Proof motor series is specifically designed for traditionally hazardous industries where explosive gases and vapors are present.

Related Information
EQP Global Explosion Proof image

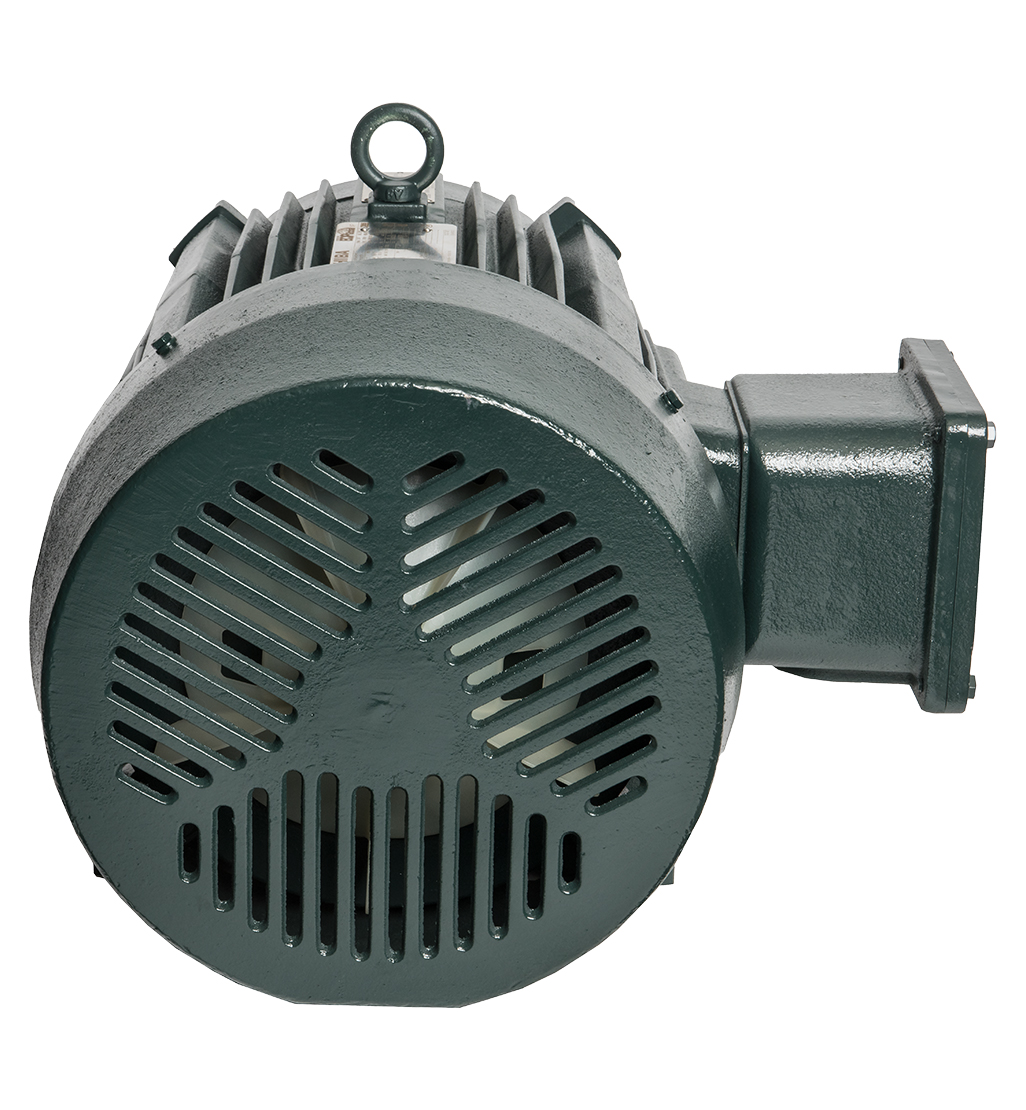

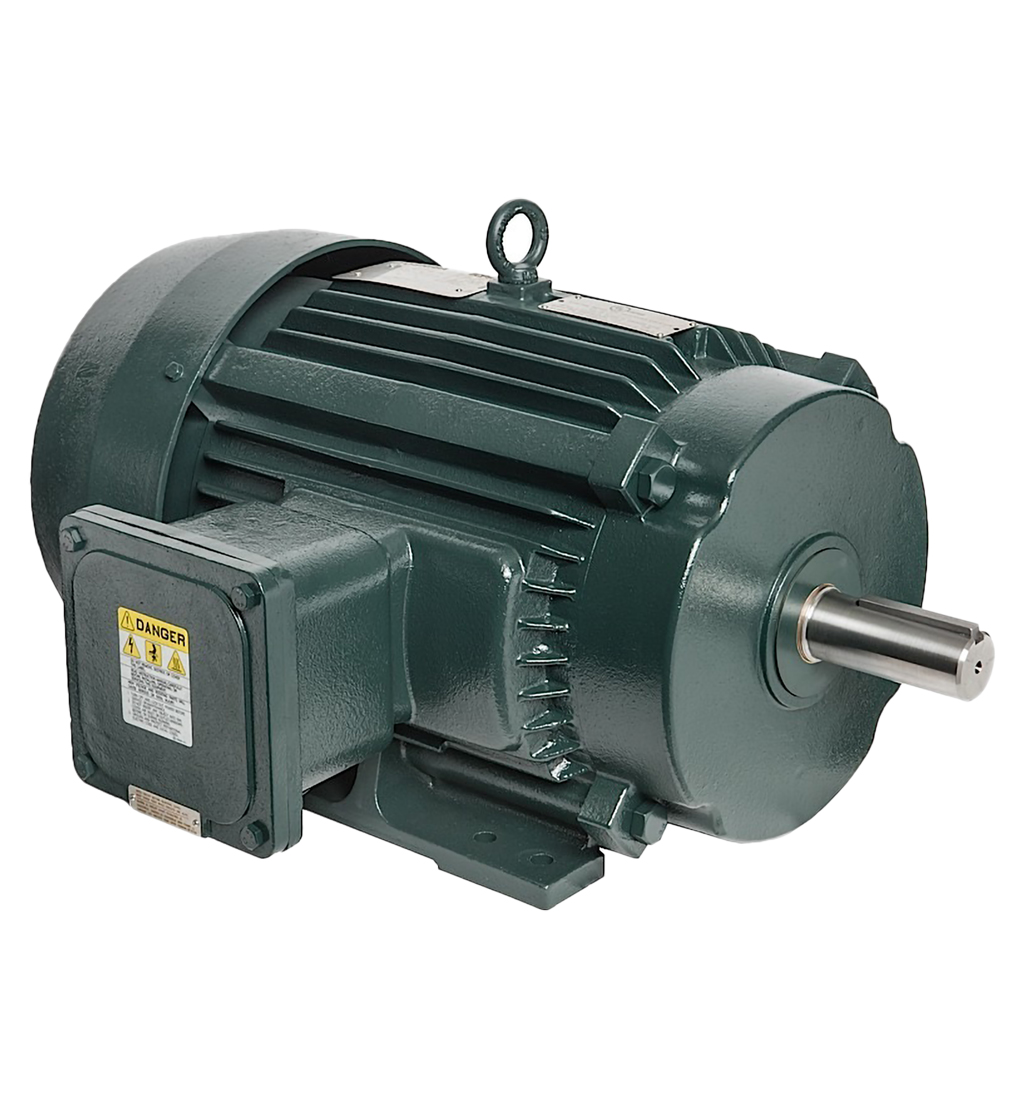

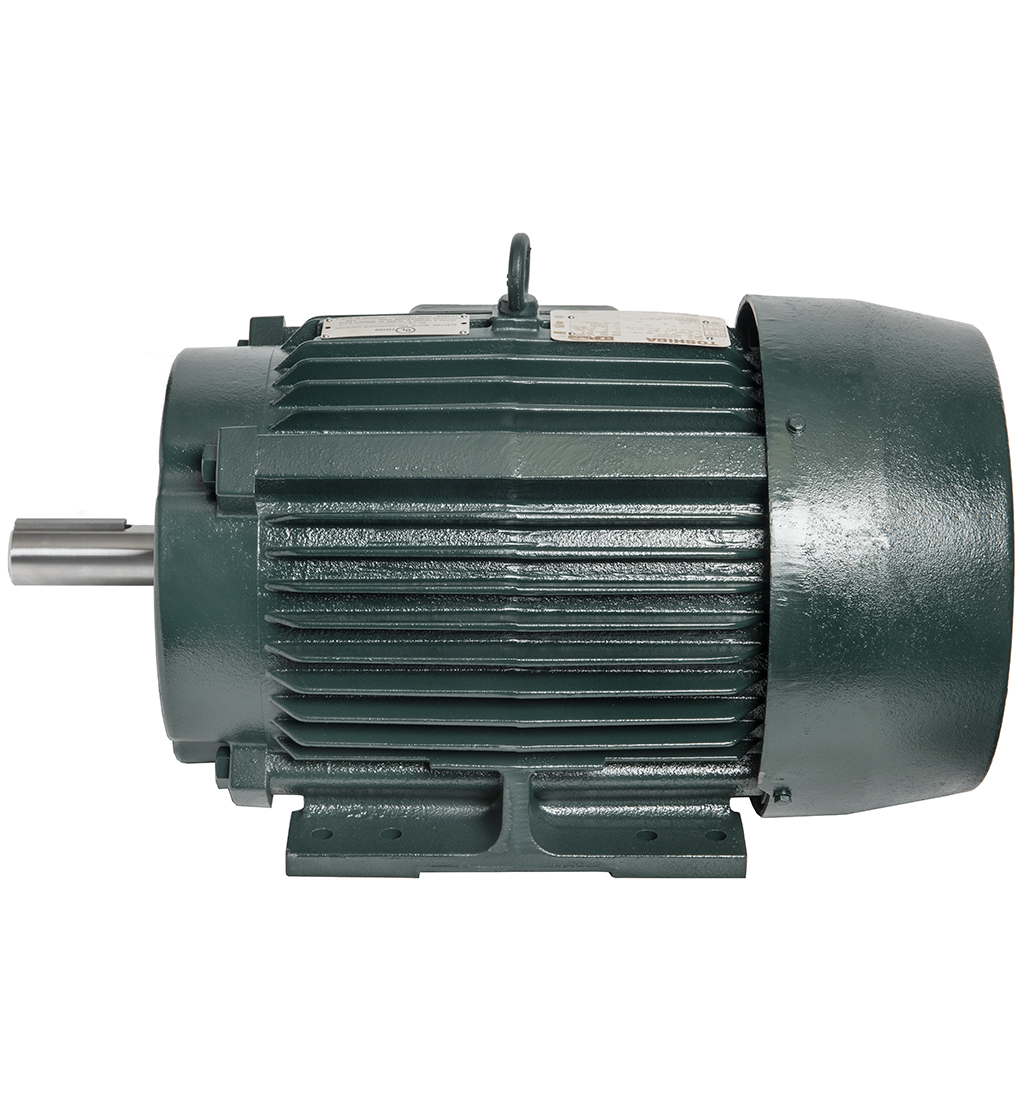

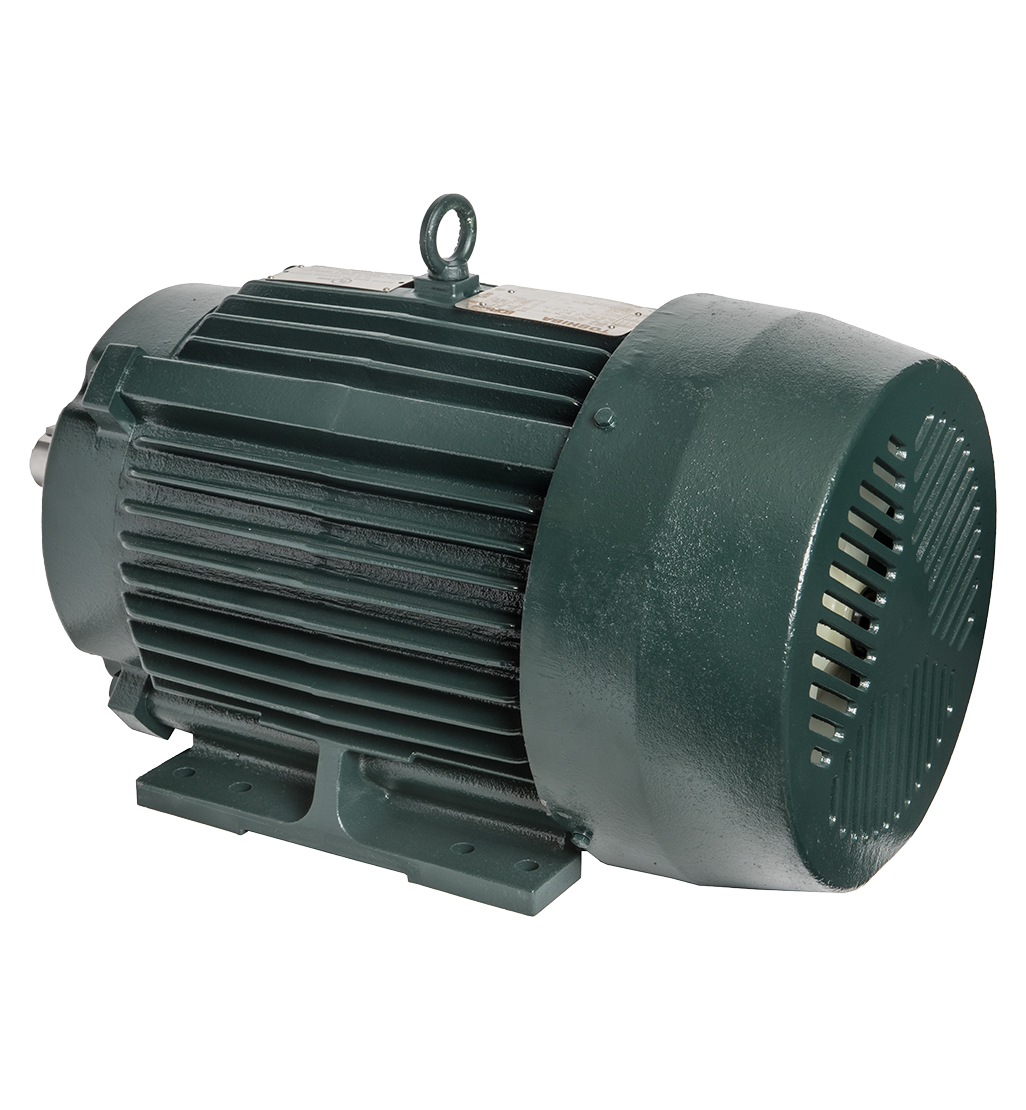

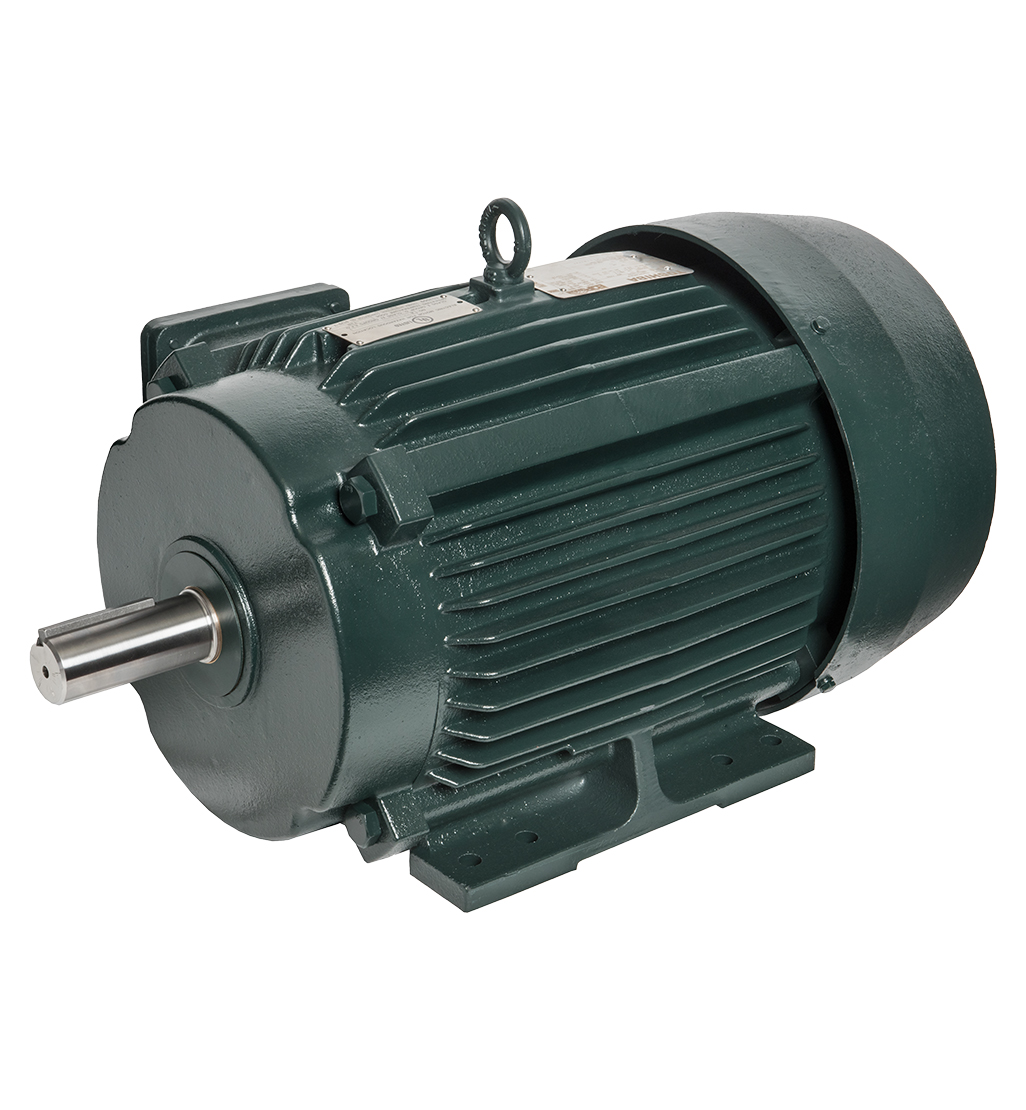

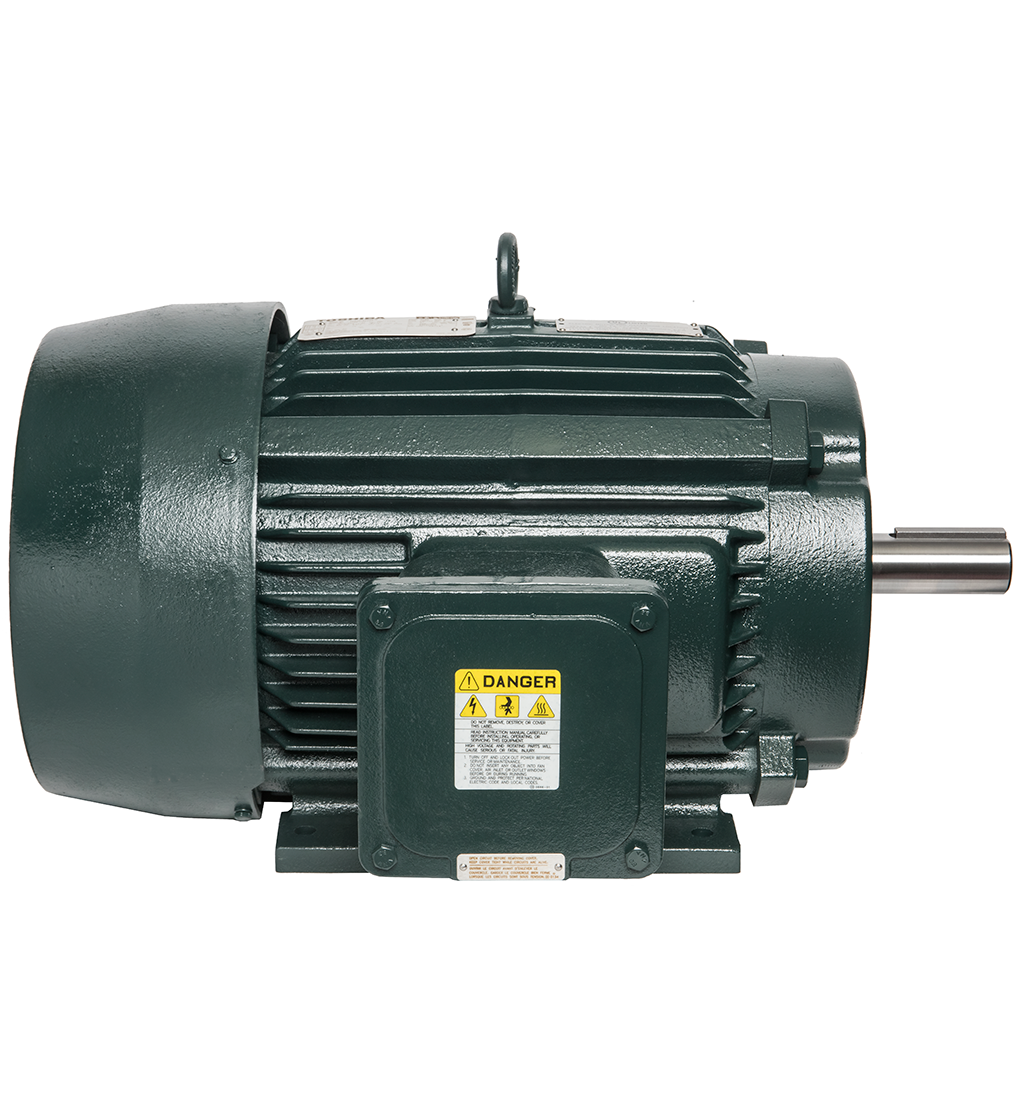

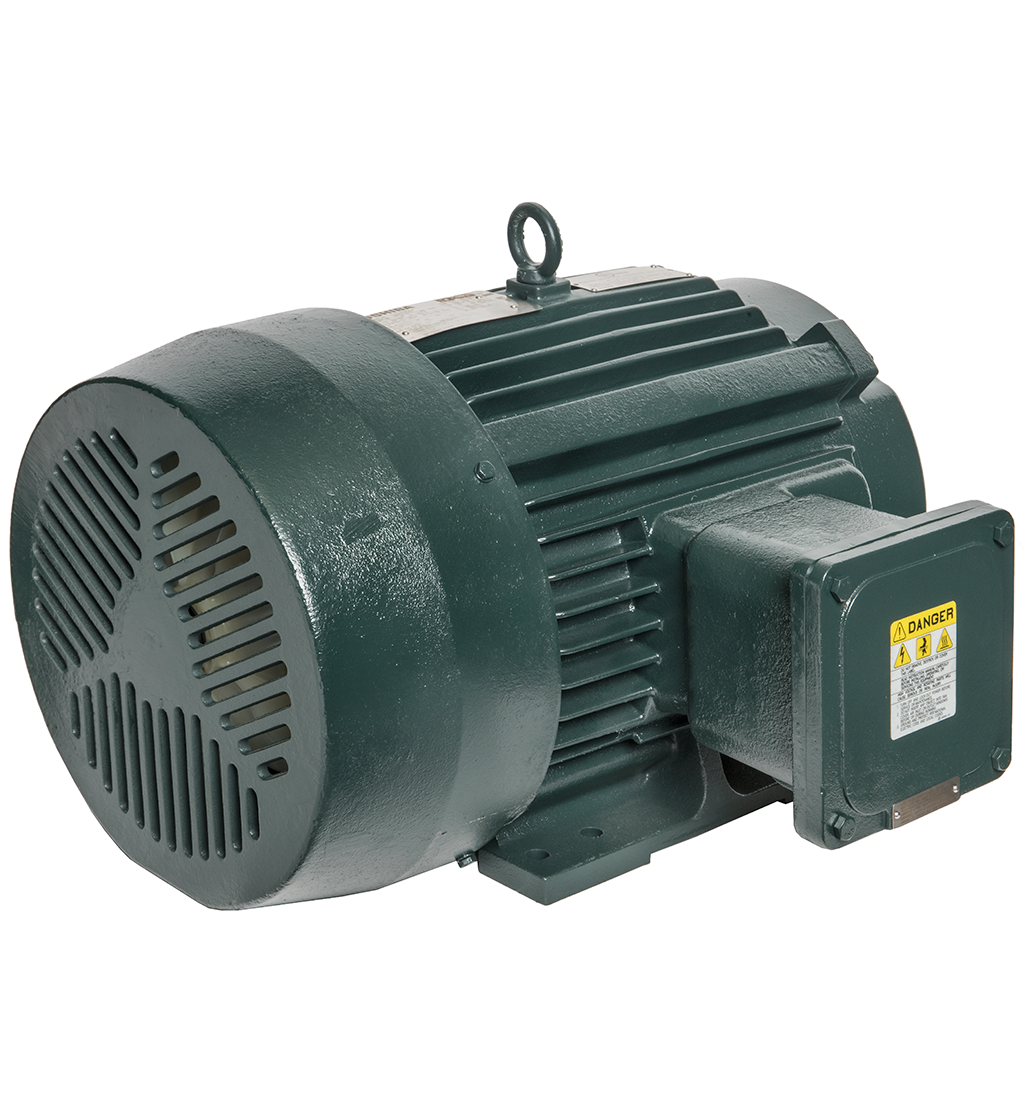

The EQP Global® XP Explosion Proof motor is a totally enclosed fan cooled product line equipped to contain an explosion that may occur inside the motor, as well as prevent explosive gases and vapors from being released into the environment. Its robust construction meets the requirements for UL- and CSA-Listed Hazardous Locations and offers the highest performance and reliability for indoor and outdoor use.

Model
HP
RPM
Enclosure
Frame
Frequency
Voltage
Efficiency
B3/48YLF2ASH 0.75 900 TEFC 145T 60 230/460 Nema Premium
B3/48YLF2OSH 0.75 900 TEFC 145T 60 575 Nema Premium
0014XPEA42A-P 1 1800 TEFC 143TC 60 230/460 Nema Premium
0014XPEC42A-P 1 1800 TEFC 143TC 60 575 Nema Premium
0016XPEA42A-P 1 1200 TEFC 143TC 60 230/460 Nema Premium
0016XPEC42A-P 1 1200 TEFC 145TC 60 575
0014XPEA41A-P 1 1800 TEFC 143T 60 230/460 Nema Premium
0014XPEC41A-P 1 1800 TEFC 143T 60 575 Nema Premium
0016XPEA41A-P 1 1200 TEFC 145T 60 230/460 Nema Premium
0016XPEC41A-P 1 1200 TEFC 145T 60 575 Nema Premium
B0018YLF2OSH 1 900 TEFC 182T 60 575 Nema Premium
Y152XPEA42A-P 1.5 3600 TEFC 143TC 60 230/460 Nema Premium
Y152XPEC42A-P 1.5 3600 TEFC 143TC 60 575 Nema Premium
Y154XPEA42A-P 1.5 1800 TEFC 145TC 60 230/460 Nema Premium
Y154XPEC42A-P 1.5 1800 TEFC 145TC 60 575 Nema Premium
Y156XPEA42A-P 1.5 1200 TEFC 182TC 60 230/460 Nema Premium
Y156XPEC42A-P 1.5 1200 TEFC 182TC 60 575 Nema Premium
BY158YLF2OSH 1.5 900 TEFC 184T 60 575 Nema Premium
B0018YLF2ASH 1.5 900 TEFC 182T 60 460 Nema Premium
Y152XPEA41A-P 1.5 3600 TEFC 143T 60 230/460 Nema Premium
Y152XPEC41A-P 1.5 3600 TEFC 143T 60 575 Nema Premium
Y154XPEA41A-P 1.5 1800 TEFC 145T 60 230/460 Nema Premium
Y154XPEC41A-P 1.5 1800 TEFC 145T 60 575 Nema Premium
Y156XPEA41A-P 1.5 1200 TEFC 182T 60 230/460 Nema Premium
Y156XPEC41A-P 1.5 1200 TEFC 182T 60 575 Nema Premium
BY158YLF2ASH 1.5 900 TEFC 184T 60 460 Nema Premium
0022XPEA41A-P 2 3600 TEFC 145T 60 230/460 Nema Premium
0022XPEC41A-P 2 3600 TEFC 145T 60 575 Nema Premium
0024XPEA41A-P 2 1800 TEFC 145T 60 230/460 Nema Premium
0024XPEC41A-P 2 1800 TEFC 145T 60 575 Nema Premium
0026XPEA41A-P 2 1200 TEFC 184T 60 230/460 Nema Premium
0026XPEC41A-P 2 1200 TEFC 184T 60 575 Nema Premium
B0028YLF2ASH 2 900 TEFC 213T 60 230/460 Nema Premium
B0028YLF2OSH 2 900 TEFC 213T 60 575 Nema Premium
0022XPEA42A-P 2 3600 TEFC 145TC 60 230/460 Nema Premium
0022XPEC42A-P 2 3600 TEFC 145TC 60 575 Nema Premium
0024XPEA42A-P 2 1800 TEFC 145TC 60 230/460 Nema Premium
0024XPEC42A-P 2 1800 TEFC 145TC 60 575 Nema Premium
0026XPEA42A-P 2 1200 TEFC 184TC 60 230/460
0026XPEC42A-P 2 1200 TEFC 184TC 60 575 Nema Premium
0032XPEA41A-P 3 3600 TEFC 182T 60 230/460 Nema Premium
0032XPEC41A-P 3 3600 TEFC 182T 60 575 Nema Premium
0034XPEA41A-P 3 1800 TEFC 182T 60 230/460 Nema Premium
0034XPEC41A-P 3 1800 TEFC 182T 60 575 Nema Premium
0036XPEA41A-P 3 1200 TEFC 213T 60 230/460 Nema Premium
0036XPEC41A-P 3 1200 TEFC 213T 60 575 Nema Premium
B0038YLF2AMH 3 900 TEFC 215T 60 460 Nema Premium
B0038YLF2OMH 3 900 TEFC 215T 60 575 Nema Premium
0032XPEA42A-P 3 3600 TEFC 182TC 60 230/460 Nema Premium
0032XPEC42A-P 3 3600 TEFC 182TC 60 575 Nema Premium
0034XPEA42A-P 3 1800 TEFC 182TC 60 230/460 Nema Premium
0034XPEC42A-P 3 1800 TEFC 182TC 60 575 Nema Premium
0036XPEA42A-P 3 1200 TEFC 213TC 60 230/460
0036XPEC42A-P 3 1200 TEFC 213TC 60 575
0052XPEA41A-P 5 3600 TEFC 184T 60 230/460 Nema Premium
0052XPEC41A-P 5 3600 TEFC 184T 60 575 Nema Premium
0054XPEA41A-P 5 1800 TEFC 184T 60 230/460 Nema Premium
0054XPEC41A-P 5 1800 TEFC 184T 60 575 Nema Premium
0056XPEA41A-P 5 1200 TEFC 215T 60 230/460 Nema Premium
0056XPEC41A-P 5 1200 TEFC 215T 60 575
B0058YLF2USH 5 900 TEFC 254T 60 460 Nema Premium
B0058YLF2OSH 5 900 TEFC 254T 60 575 Nema Premium
0052XPEC42A-P 5 3600 TEFC 184TC 60 575 Nema Premium
0054XPEA42A-P 5 1800 TEFC 184TC 60 230/460 Nema Premium
0054XPEC42A-P 5 1800 TEFC 184TC 60 575 Nema Premium
0056XPEA42A-P 5 1200 TEFC 215TC 60 230/460
0056XPEC42A-P 5 1200 TEFC 215TC 60 575
Y752XPEA41A-P 7.5 3600 TEFC 213T 60 230/460 Nema Premium
Y752XPEC41A-P 7.5 3600 TEFC 213T 60 575 Nema Premium
Y754XPEA41A-P 7.5 1800 TEFC 213T 60 230/460 Nema Premium
Y754XPEC41A-P 7.5 1800 TEFC 215T 60 575 Nema Premium
Y756XPEA41A-P 7.5 1200 TEFC 254T 60 230/460 Nema Premium
Y756XPEC41A-P 7.5 1200 TEFC 254T 60 575 Nema Premium
BY758YLF2USH 7.5 900 TEFC 256T 60 460 Nema Premium
BY758YLF2OMH 7.5 900 TEFC 256T 60 575
Y752XPEA42A-P 7.5 3600 TEFC 213TC 60 230/460 Nema Premium
Y752XPEC42A-P 7.5 3600 TEFC 213TC 60 575 Nema Premium
Y754XPEA42A-P 7.5 1800 TEFC 213TC 60 230/460 Nema Premium
Y754XPEC42A-P 7.5 1800 TEFC 215TC 60 575 Nema Premium
Y756XPEA42A-P 7.5 1200 TEFC 254TC 60 230/460 Nema Premium
Y756XPEC42A-P 7.5 1200 TEFC 254TC 60 575 Nema Premium
0102XPEA41A-P 10 3600 TEFC 215T 60 230/460 Nema Premium
0102XPEC41A-P 10 3600 TEFC 215T 60 575 Nema Premium
0104XPEA41A-P 10 1800 TEFC 215T 60 230/460 Nema Premium
0104XPEC41A-P 10 1800 TEFC 215T 60 575 Nema Premium
0106XPEA41A-P 10 1200 TEFC 256T 60 230/460 Nema Premium
0106XPEC41A-P 10 1200 TEFC 256T 60 575 Nema Premium
B0108YLF3AMH 10 900 TEFC 284T 60 230/460 Nema Premium
B0108YLF3OMH 10 900 TEFC 284T 60 575 Nema Premium
0102XPEA42A-P 10 3600 TEFC 215TC 60 230/460 Nema Premium
0102XPEC42A-P 10 3600 TEFC 215TC 60 575 Nema Premium
0104XPEA42A-P 10 1800 TEFC 215TC 60 230/460 Nema Premium
0104XPEC42A-P 10 1800 TEFC 215TC 60 575 Nema Premium
0106XPEA42A-P 10 1200 60 230/460
0106XPEC42A-P 10 1200 TEFC 256TC 60 575 Nema Premium
0152XPEA41A-P 15 3600 TEFC 254T 60 230/460 Nema Premium
0152XPEC41A-P 15 3600 TEFC 254T 60 575 Nema Premium
0154XPEA41A-P 15 1800 TEFC 254T 60 230/460 Nema Premium
0154XPEC41A-P 15 1800 TEFC 254T 60 575 Nema Premium
0156XPEA41A-P 15 1200 TEFC 284T 60 230/460 Nema Premium
0156XPEC41A-P 15 1200 TEFC 284T 60 575 Nema Premium
B0158YLF2USH 15 900 TEFC 286T 60 460 Nema Premium
B0158YLF2OSH 15 900 TEFC 286T 60 575 Nema Premium
0152XPEA42A-P 15 3600 TEFC 254TC 60 230/460 Nema Premium
0152XPEC42A-P 15 3600 TEFC 254TC 60 575
0154XPEA42A-P 15 1800 TEFC 254TC 60 230/460 Nema Premium
0154XPEC42A-P 15 1800 TEFC 254TC 60 575 Nema Premium
0156XPEA42A-P 15 1200 TEFC 284TC 60 230/460 Nema Premium
0156XPEC42A-P 15 1200 60 575
0202XPEA41A-P 20 3600 TEFC 256T 60 230/460 Nema Premium
0202XPEC41A-P 20 3600 TEFC 256T 60 575 Nema Premium
0204XPEA41A-P 20 1800 TEFC 256T 60 230/460 Nema Premium
0204XPEC41A-P 20 1800 TEFC 256T 60 575 Nema Premium
0206XPEA41A-P 20 1200 TEFC 286T 60 230/460 Nema Premium
0206XPEC41A-P 20 1200 TEFC 286T 60 575 Nema Premium
B0208YLF3AMH 20 900 TEFC 324T 60 460 Nema Premium
B0208YLF3OMH 20 900 TEFC 324T 60 575 Nema Premium
0202XPEA42A-P 20 3600 TEFC 256TC 60 230/460 Nema Premium
0202XPEC42A-P 20 3600 TEFC 256TC 60 575 Nema Premium
0204XPEA42A-P 20 1800 TEFC 256TC 60 230/460 Nema Premium
0204XPEC42A-P 20 1800 TEFC 256TC 60 575 Nema Premium
0206XPEA42A-P 20 1200 60 230/460
0206XPEC42A-P 20 1200 60 575
0252XPEA41B-P 25 3600 TEFC 284TS 60 230/460 Nema Premium
0252XPEC41B-P 25 3600 TEFC 284TS 60 575 Nema Premium
0254XPEA41A-P 25 1800 TEFC 284T 60 230/460 Nema Premium
0254XPEC41A-P 25 1800 TEFC 284T 60 575 Nema Premium
0256XPEA41A-P 25 1200 TEFC 324T 60 230/460 Nema Premium
0256XPEC41A-P 25 1200 TEFC 324T 60 575 Nema Premium
B0258YLF1AMH 25 900 TEFC 326T 60 460 Nema Premium
B0258YLF1OMH 25 900 TEFC 326T 60 575 Nema Premium
0252XPEA42A-P 25 3600 TEFC 284TSC 60 230/460 Nema Premium
0252XPEC42A-P 25 3600 TEFC 284TSC 60 575 Nema Premium
0254XPEA42A-P 25 3600 TEFC 284TC 60 230/460 Nema Premium
0254XPEC42A-P 25 1800 TEFC 284TC 60 575 Nema Premium
0256XPEA42A-P 25 1200 60 230/460
0256XPEC42A-P 25 1200 60 575
0302XPEA41B-P 30 3600 TEFC 286TS 60 230/460 Nema Premium
0302XPEC41B-P 30 3600 TEFC 286TS 60 575 Nema Premium
0304XPEA41A-P 30 1800 TEFC 286T 60 230/460 Nema Premium
0304XPEC41A-P 30 1800 TEFC 286T 60 575 Nema Premium
0306XPEA41A-P 30 1200 TEFC 326T 60 230/460 Nema Premium
0306XPEC41A-P 30 1200 TEFC 326T 60 575 Nema Premium
B0308YLF3AMH 30 900 TEFC 364T 60 460 Nema Premium
B0308YLF3OMH 30 900 TEFC 364T 60 575 Nema Premium
0302XPEA42B-P 30 3600 60 230/460
0302XPEC42B-P 30 3600 TEFC 286TSC 60 575 Nema Premium
0304XPEA42A-P 30 1800 TEFC 286TC 60 230/460 Nema Premium
0304XPEC42A-P 30 1800 TEFC 286TC 60 575 Nema Premium
0306XPEA42A-P 30 1200 60 230/460
0306XPEC42A-P 30 1200 60 575
0402XPEA41B-P 40 3600 TEFC 324TS 60 230/460 Nema Premium
0402XPEC41B-P 40 3600 TEFC 324TS 60 575 Nema Premium
0404XPEA41A-P 40 1800 TEFC 324T 60 230/460 Nema Premium
0404XPEC41A-P 40 1800 TEFC 324T 60 575 Nema Premium
0406XPEA41A-P 40 1200 TEFC 364T 60 230/460 Nema Premium
0406XPEC41A-P 40 1200 TEFC 364T 60 575 Nema Premium
B0408YLF3AMH 40 900 TEFC 365T 60 460 Nema Premium
B0408YLF3OMH 40 900 TEFC 365T 60 575 Nema Premium
0402XPEA42B-P 40 3600 60 230/460
0402XPEC42B-P 40 3600 TEFC 324TSC 60 575 Nema Premium
0404XPEA42A-P 40 1800 TEFC 324TC 60 230/460 Nema Premium
0404XPEC42A-P 40 1800 TEFC 324TC 60 575 Nema Premium
0406XPEA42A-P 40 1200 TEFC 364TC 60 230/460 Nema Premium
0406XPEC42A-P 40 1200 60 575
0502XPEC41B-P 50 3600 TEFC 326TS 60 575 Nema Premium
0504XPEA41A-P 50 1800 TEFC 326T 60 230/460 Nema Premium
0504XPEC41A-P 50 1800 TEFC 326T 60 575 Nema Premium
0506XPEA41A-P 50 1200 TEFC 365T 60 460 Nema Premium
0506XPEC41A-P 50 1200 TEFC 365T 60 575 Nema Premium
B0508YLF3OSH 50 900 TEFC 404T 60 575 Nema Premium
0502XPEA41B-P 50 3600 TEFC 326TS 60 230/460 Nema Premium
0502XPEA42B-P 50 3600 TEFC 326TSC 60 230/460
0502XPEC42B-P 50 3600 TEFC 326TSC 60 575 Nema Premium
0504XPEA42A-P 50 1800 TEFC 326TC 60 230/460 Nema Premium
0504XPEC42A-P 50 1800 TEFC 326TC 60 575
0506XPEA42A-P 50 1200 60 460
0506XPEC42A-P 50 1200 60 575
B0508YLF3ASH 60 1200 TEFC 404T 60 460 Nema Premium
0602XPEA41B-P 60 3600 TEFC 364TS 60 230/460 Nema Premium
0602XPEC41B-P 60 3600 TEFC 364TS 60 575 Nema Premium
0604XPEA41A-P 60 1800 TEFC 364T 60 230/460 Nema Premium
0604XPEC41A-P 60 1800 TEFC 364T 60 575 Nema Premium
B0606YLF3USH 60 1200 TEFC 404T 60 460 Nema Premium
B0606YLF3OSH 60 1200 TEFC 404T 60 575 Nema Premium
B0608YLF3ASH 60 900 TEFC 405T 60 230/460 Nema Premium
B0608YLF3OSH 60 900 TEFC 405T 60 575 Nema Premium
0602XPEA42B-P 60 3600 60 230/460
0602XPEC42B-P 60 3600 60 575
0604XPEA42A-P 60 1800 TEFC 364TC 60 230/460 Nema Premium
0604XPEC42A-P 60 1800 TEFC 364TC 60 575 Nema Premium
0752XPEA41B-P 75 3600 TEFC 365TS 60 230/460 Nema Premium
0752XPEC41B-P 75 3600 TEFC 365TS 60 575 Nema Premium
0754XPEA41A-P 75 1800 TEFC 365T 60 460 Nema Premium
0754XPEC41A-P 75 1800 TEFC 365T 60 575 Nema Premium
B0756YLF3USH 75 1200 TEFC 405T 60 460 Nema Premium
B0756YLF3OSH 75 1200 TEFC 405T 60 575 Nema Premium
B0758YLF4ASH 75 900 TEFC 444TS 60 460 Nema Premium
B0758YLF4OSH 75 900 TEFC 444T 60 575 Nema Premium
0752XPEA42B-P 75 3600 60 230/460
0752XPEC42B-P 75 3600 60 575
0754XPEA42A-P 75 1800 TEFC 365TC 60 460 Nema Premium
0754XPEC42A-P 75 1800 TEFC 365TC 60 575 Nema Premium
B1002YLG3USH 100 3600 TEFC 405TS 60 460 Nema Premium
B1002YLG3OSH 100 3600 TEFC 405TS 60 575 Nema Premium
B1004YLF3USH 100 1800 TEFC 405T 60 460 Nema Premium
B1004YLF3OSH 100 1800 TEFC 405T 60 575 Nema Premium
B1006YLF4USH 100 1200 TEFC 444T 60 460 Nema Premium
B1006YLF4OSH 100 1200 TEFC 444T 60 575 Nema Premium
B1008YLF4ASH 100 900 TEFC 445T 60 460 Nema Premium
B1251YLG3USH 125 3600 TEFC 444TS 60 460 Nema Premium
B1253YLG3USH 125 3600 TEFC 444TS 60 460 Nema Premium
B1251YLG3OSH 125 3600 TEFC 444TS 60 575 Nema Premium
B1253YLG3OSH 125 3600 TEFC 444TS 60 575 Nema Premium
B1254YLF4USH 125 1800 TEFC 444T 60 460 Nema Premium
B1254YLF40SH 125 1800 TEFC 444T 60 575 Nema Premium
B1256YLF4USH 125 1200 TEFC 445T 60 460 Nema Premium
B1256YLF4OSH 125 1200 TEFC 445T 60 575 Nema Premium
1258XPEB41A 125 900 TEFC N449T 60 460 Nema Premium
1258XPEB41A-R 125 900 TEFC 447T 60 460 Nema Premium
1258XPEC41A-R 125 900 TEFC 447T 60 575 Nema Premium
B1501YLG3USH 150 3600 TEFC 445TS 60 460 Nema Premium
B1503YLG3USH 150 3600 TEFC 445TS 60 460 Nema Premium
B1501YLG3OSH 150 3600 TEFC 445TS 60 575 Nema Premium
B1503YLG3OSH 150 3600 TEFC 445TS 60 575 Nema Premium
B1504YLF4USH 150 1800 TEFC 445T 60 460 Nema Premium
B1504YLF4OMH 150 1800 TEFC 445T 60 575 Nema Premium
1508XPEB41A-R 150 900 TEFC 447T 60 460 Nema Premium
1508XPEC41A 150 900 TEFC N449T 60 575 Nema Premium
B2001YLG3BSH 200 3600 TEFC 447TS 60 460 Nema Premium
B2003YLG3BSH 200 3600 TEFC 447TS 60 460 Nema Premium
B2001YLG3OSH 200 3600 TEFC 447TS 60 575 Nema Premium
B2003YLG3OSH 200 3600 TEFC 447TS 60 575 Nema Premium
B2004YLF4BSH 200 1800 TEFC 447T 60 460 Nema Premium
B2004YLF4OSH 200 1800 TEFC 447T 60 575 Nema Premium
2006XPEB41A 200 1200 TEFC N449T 60 460 Nema Premium
2006XPEB41A-R 200 1200 TEFC N449T 60 460 Nema Premium
2006XPEC41A 200 1200 TEFC N449T 60 575 Nema Premium
2006XPEC41A-R 200 1200 TEFC N449T 60 575 Nema Premium
2008XPEB41A-R 200 900 TEFC N449T 60 460 Nema Premium
2008XPEC41A 200 900 TEFC N449T 60 575 Nema Premium
2503XPEB41B 250 3600 TEFC N449TS 60 230/460 Nema Premium
2503XPEC41B 250 3600 TEFC N449TS 60 575 Nema Premium
2504XPEB41A 250 1800 60 460
2504XPEB41A-R 250 1800 60 460
2504XPEC41A 250 1800 TEFC N449T 60 575 Nema Premium
2504XPEC41A-R 250 1800 TEFC N449T 60 575 Nema Premium
2506XPEB41A 250 1200 TEFC N449T 60 460 Nema Premium
2506XPEB41A-R 250 1200 TEFC N449T 60 460 Nema Premium
2506XPEC41A 250 1200 TEFC N449T 60 575 Nema Premium
2506XPEC41A-R 250 1200 TEFC N449T 60 575 Nema Premium
2506XPEB41B 250 1200 TEFC N449TS 60 460 Nema Premium
2506XPEC41B 250 1200 TEFC N449TS 60 575 Nema Premium
3006XPEC41A 300 1200 TEFC N449T 60 575 Nema Premium
3006XPEC41A-R 300 1200 TEFC N449T 60 575 Nema Premium
3003XPEB41B 300 3600 TEFC N449TS 60 460 Nema Premium
3003XPEC41B 300 3600 TEFC N449TS 60 575 Nema Premium
3004XPEB41A 300 1800 TEFC N449T 60 460 Nema Premium
3004XPEB41A-R 300 1800 TEFC N449T 60 460 Nema Premium
3004XPEC41A 300 1800 TEFC N449T 60 575 Nema Premium
3004XPEC41A-R 300 1800 TEFC N449T 60 575 Nema Premium
3006XPEB41A 300 1200 TEFC N449T 60 460 Nema Premium
3006XPEB41A-R 300 1200 TEFC N449T 60 460 Nema Premium
3503XPEC41B 350 3600 TEFC N449T 60 575 Nema Premium
3503XPEB41B 350 3600 TEFC N449T 60 460 Nema Premium
3504XPEB41A 350 1800 60 460
3504XPEB41A-R 350 1800 60 460
3504XPEC41A 350 1800 TEFC N449T 60 575 Nema Premium
3504XPEC41A-R 350 1800 TEFC N449T 60 575 Nema Premium

Product Image Gallery

Do you have a question?
x



Top Top
