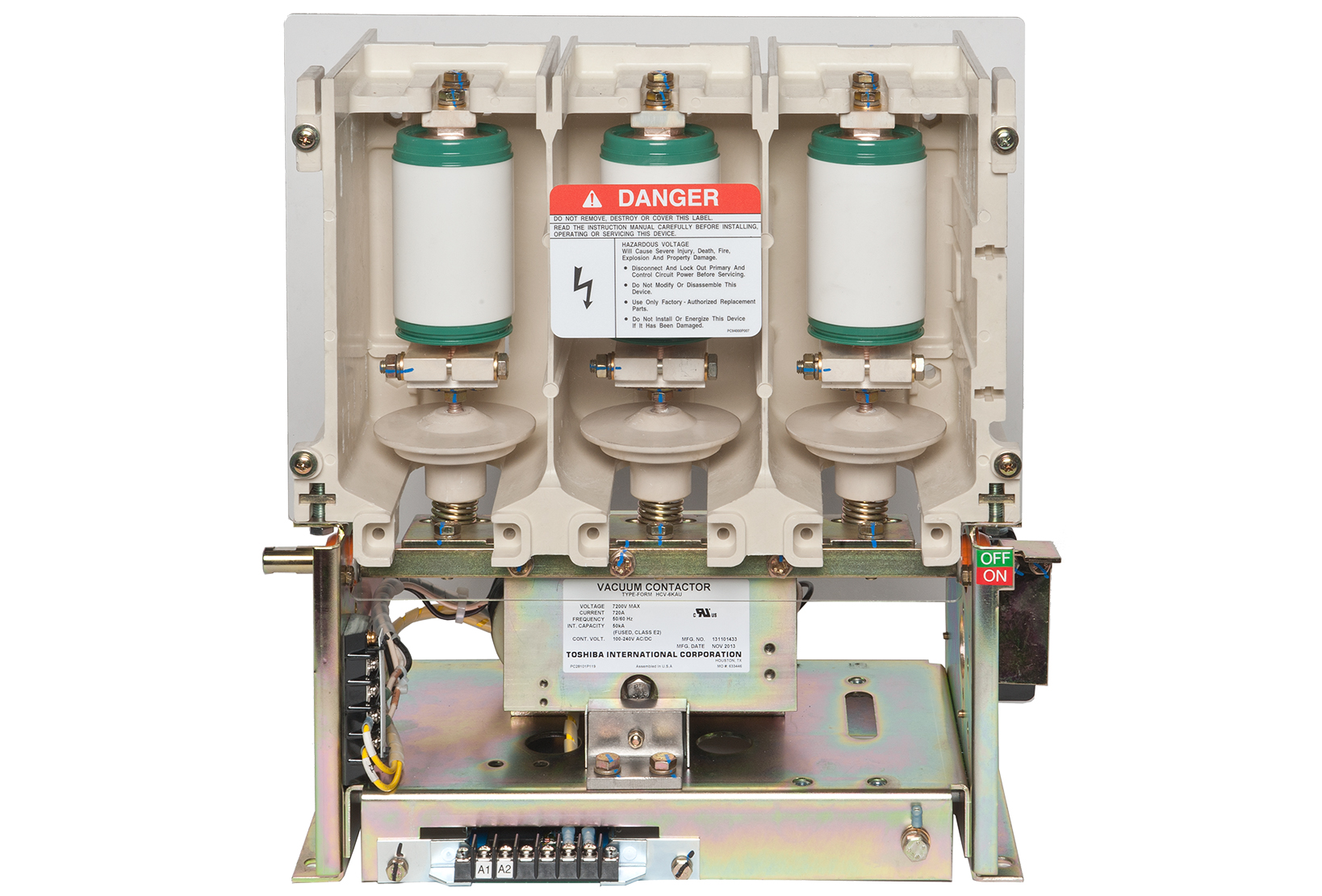

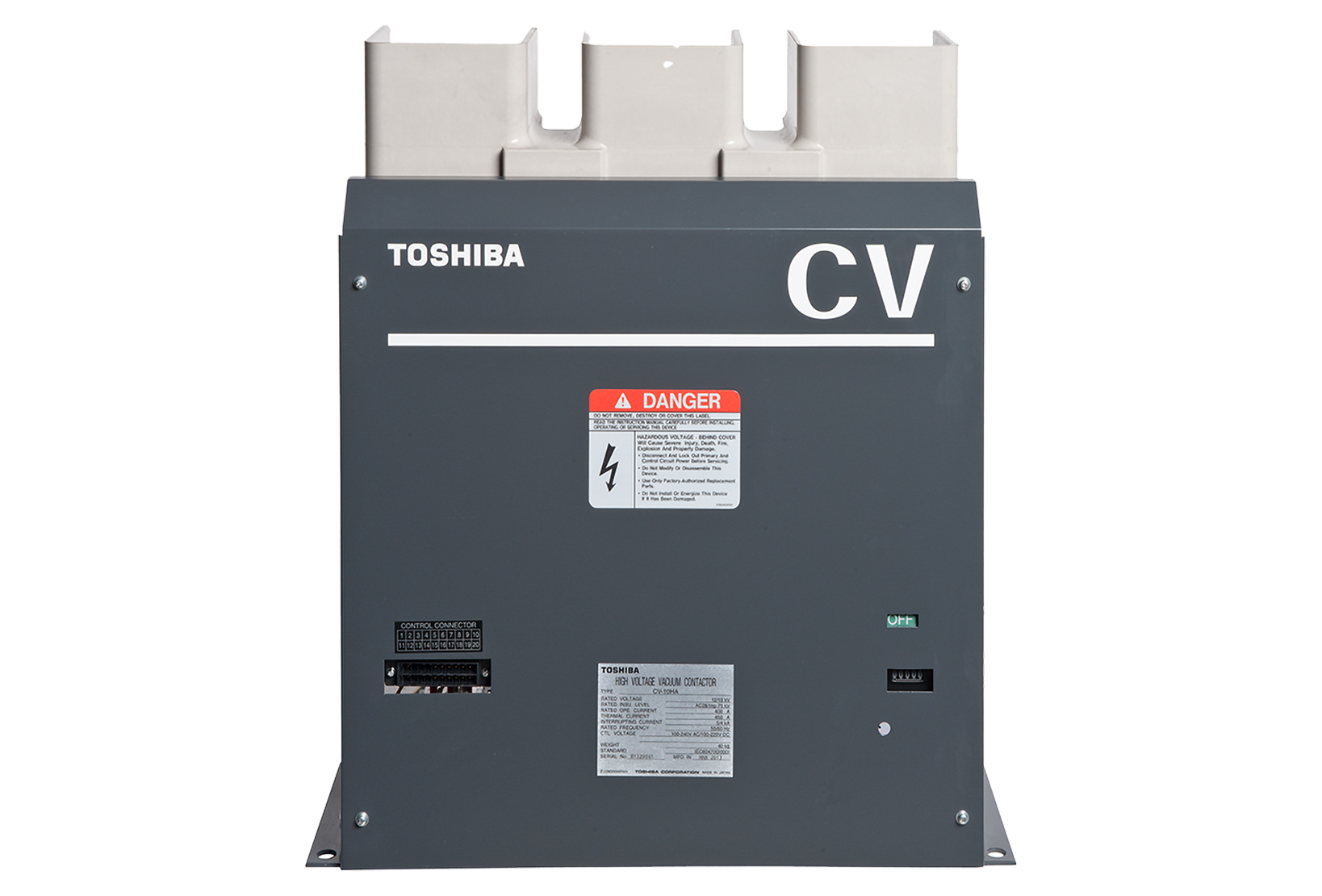

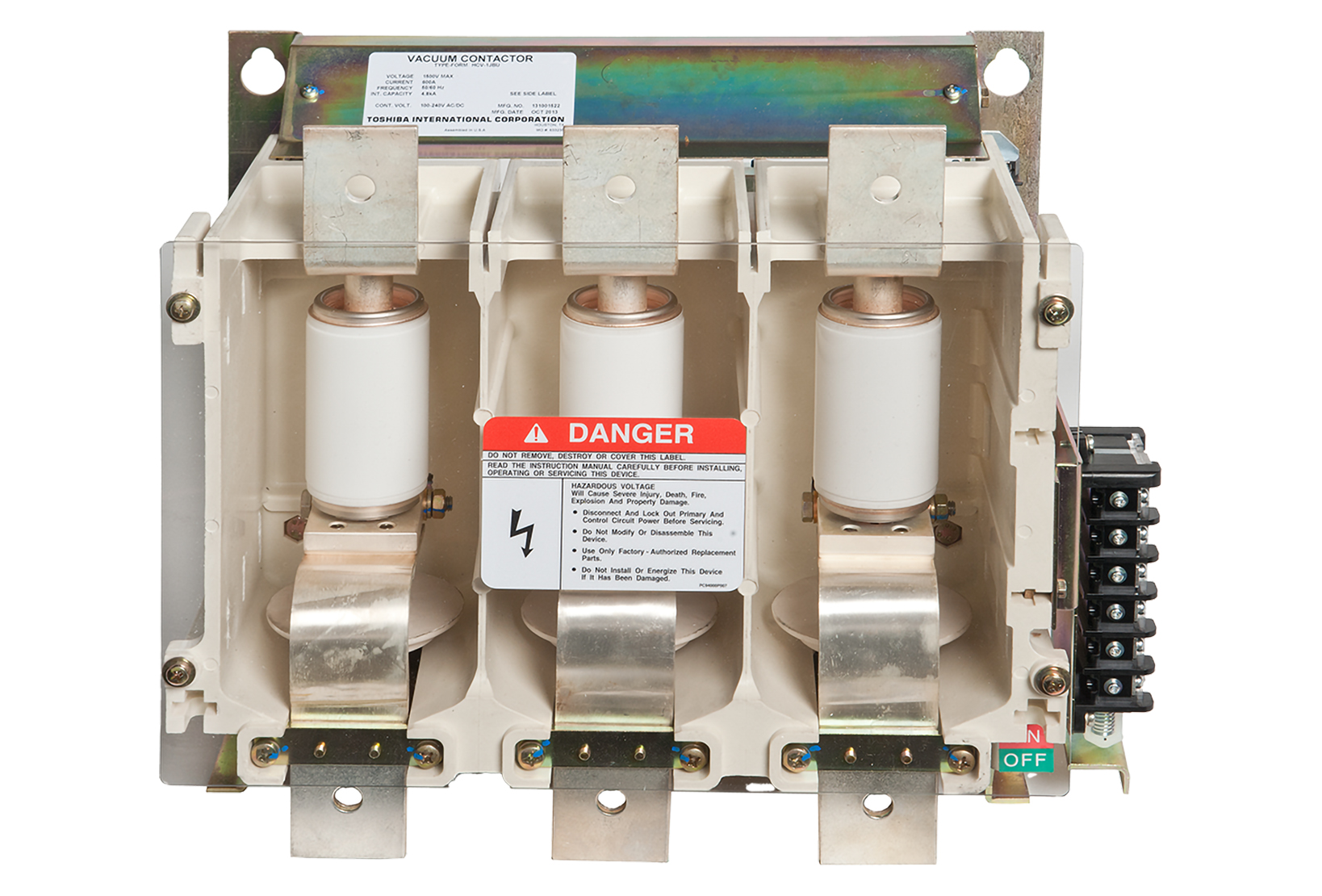

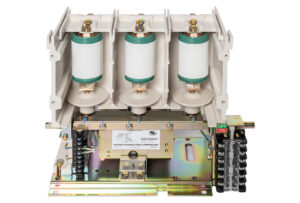

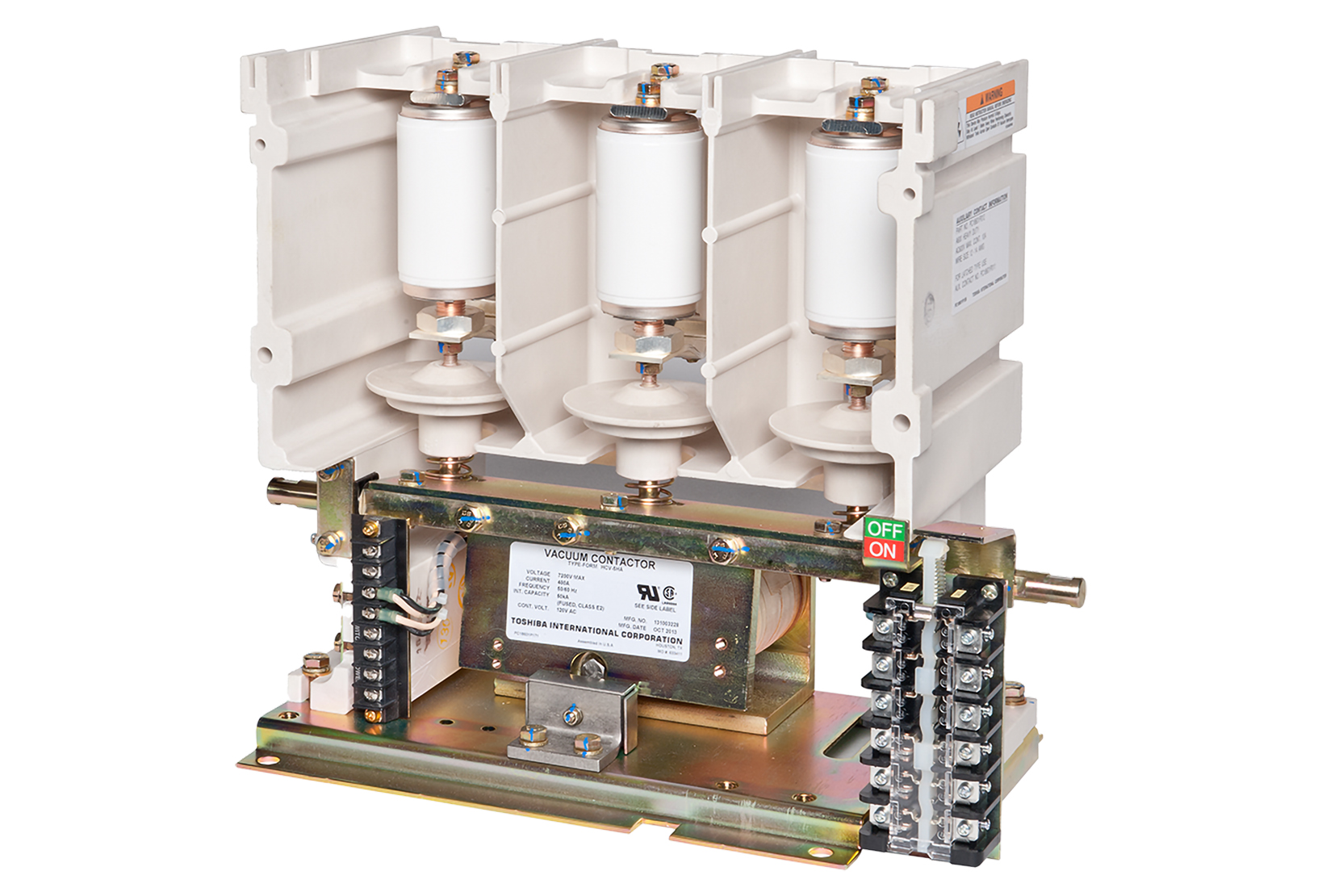

CV-10
Vacuum Contactor
| CONTACTOR MODEL |
HCV-1JBU |
HCV-1KAU |
HCV-5HA |
HCV-5HAL* |
CV-10HA(L) |
CV-10HB(L) |
HCV-6KAU |
HCV-6KALU* |
||
| Rated Voltage | 208-1500V |
2400/4200/6900V(7.2kV max) |
12/15kV |
12/13.8kV (max.) |
2400/4200/6900V(7.2kV max) |
|||||
| Rated Operational Current | 600A |
720A |
400A |
400A
|
720A
|
|||||
| Rated Thermal Current | 600A |
720A |
450A |
450A
| 800A
| |||||
| Interrupting Current | 42,000A |
7000A (4.5kA @7.2kV) |
5kA/4kA |
5000A |
7200A |
|||||
| Peak Withstand Current | - |
85 kA (Peak) |
15.8kA |
12.5kA |
20kA |
|||||
| Short-circuit Making/Breaking Current | 6000A (100 times) |
7200A (100 times) |
6.3kA |
5kA/4kA |
5kA |
8.0A K |
||||
| 6000A (25 times) |
7200A (25 times) |
"O" - 3min. - "CO" - 3min. - "CO" |
||||||||
| Class E1 MVA | - |
25/50 (36/60) |
120
| 30/60/85
|
||||||
| Class E2 MVA | - |
200/400/570
|
1200MVA |
200/400/600 |
||||||
| Withstand Overload Current | 3600A - 30s |
4320A - 30s |
2400A -30s |
1920A - 30s |
4320A - 30s |
|||||
| 6000A - 2s |
7200A - 2s |
4000A - 12s |
- |
- |
||||||
| 9000A - 1s |
10800A - 1s |
6300A - 2s |
8000A - 1s |
10,800A - 1s |
||||||
| 30,000A - 0.05s |
36,000A - 0.05s |
- |
- |
- |
||||||
| Overcurrent Strength (Peak Value) | -
|
- |
See Coordination Below
| 85kA (PEAK)
|
||||||
| Coordination w/Current-Limiting Fuses | 50kA |
45kA |
- |
Prospective Short-circuit Current 50kA Cut-off Current 36kA Peak |
- |
|||||
| Switching Frequency | 1200/Hr |
1200/Hr |
300/Hr |
300/Hr (Latched type 120/Hr) |
600/Hr |
300/Hr |
||||
| Mechanical Life*** | 2.5M |
2.5M |
250k |
250k |
1M |
200k | ||||
| Electrical Life*** | 500k |
250k |
250k |
100k |
200k |
|||||
| Impulse Withstand | 15kV |
60kV |
75kV (95kV/110kV w/SA)
|
60kV |
||||||
| Dielectric Strength | 5.5kV - 1 min.
|
22kV-1 Minute |
36kV - 1 Min
|
22kV-1 Minute |
||||||
| ClosingTime (@120Vac) | 60 - 80 ms
|
75 - 100 ms
|
120 - 145 ms |
80-100 ms |
||||||
| Opening Time (@120Vac) | 50 - 65 ms |
20 - 30 ms |
80 - 90 ms |
30 - 40 ms |
40-55 ms |
|||||
| Arcing Time | 10 ms or Less |
10 ms or Less |
10 ms or Less |
10 ms or Less |
||||||
| Pick-Up Voltage | 85% (Hot) - 70% (Cold) |
85% (Hot) - 70 % (Cold) AC or DC |
||||||||
| Drop-Out Voltage | 20% or more of rated control voltage (cold) |
50%(Hot) - 40% (Cold) AC or DC |
||||||||
| Tripping Voltage | - |
60% or less of Coil Rating DC (cold) |
||||||||
| Control Voltage | Standard | 100-240 Vac/dc |
120Vac 50/60 Hz |
100-240Vac/100-250Vdc |
115-240Vac/125-250Vdc |
|||||
| Optional | - |
240Vac/125Vdc/250Vdc | - |
- |
||||||
| Control Circuit Burden | Closing | 1080 VA |
5.4A Peak @120Vac 670VA (AC) - 700W (DC) |
7.2A Peak @120Vac 864VA (AC) - 900W (DC) |
6~7.0A @120Vac 840VA (AC) - 875W (DC) |
|||||
| Holding | 50 VA |
0.12A Avg. @120Vac 85VA (AC) - 85W (DC) |
0.16A Avg. @120Vac 80VA (AC) - 90W (DC) |
0.8~1.0A @120Vac 48VA |
||||||
| Tripping* | - |
4.8A Peak @125Vdc |
4.8A Peak @125Vdc |
4.8A Peak @125Vdc |
||||||
| Auxiliary Contact Ratings | Arrangement | 3NO-3NC |
3NO-3NC |
2NO-3NC |
4NO-2NC (Latched type 2NO-1NC) |
3NO-3NC |
2NO-2NC |
|||
| Current | 10A (A600) |
|||||||||
| Voltage | 600V Max - 48V Min |
|||||||||
| AC | 720VA (P.F. 0.35) |
|||||||||
| DC | 60W (L/R 150 ms) |
|||||||||
| Application Conditions | Altitude w/o Derate | Lower than 3300ft (1000m) |
||||||||
| Ambient | -5 to + 40°C |
|||||||||
| Relative Humidity | Minimum 45% to Maximum 95% Non-condensing |
|||||||||
| Vibration | Max. 20 Hz - 1G |
|||||||||
| Shock | Max. 30G |
|||||||||
| Weight - lbs. (kg) | 59.5 (27) |
61.7 (28) |
43 (19.5) |
44 (20) |
88 (40) |
91 (41) |
60 (27) |
62 (28) |
||
* Latched version. |
||||||||||
Toshiba's CV-10 vacuum contactor can be used in many applications where only vacuum circuit breakers were previously used. The CV-10H has a smaller footprint, lower price, and over 10 times the lifespan of a medium voltage breaker. The HV model is specifically designed for capacitor switching, while the HA model is for motor and transformer switching.
