Brake Motors

Toshiba's EQP Global® Brake Motor series is specifically designed to meet the needs of general holding applications.

Related Information
Resource Library | Distributor Portal | Training

Toshiba’s NEMA Premium ® brake motors are designed to meet the needs of general holding purposes and built to withstand the toughest conditions with highest efficiency, torque ratings and greater reliability. These premium efficient EQP Global Brake Motors are IP23-rated and suitable for indoor and outdoor use.

Click for more information



Application Specific Design This motor series is designed for holding duty brake applications and offers horizontal or vertical* mounting options and a corrosion-resistant paint system for protection in severe duty environments.

Ingress Protection

The motor is a totally enclosed fan cooled design with v-ring seals that provide IP55 protection, which helps prevent ingress of humidity, dust, dirt, and other contaminants present in the environment.

Low Vibration A vibration level of 0.10 inches/second, which exceeds NEMA MG1 requirements, provides durability by helping to prolong motor life and reduce downtime.
Multi Drain Provisions Multiple drain plug provisions on brackets and frame allow drainage for all possible vertical* and horizontal mounting positions.
Inverter Duty Rated The EQP Global Brake Motor series is designed for use with an adjustable speed drive, which can lead to energy savings when run at optimum fan speed. The insulation system meets NEMA MG1 Part 31, providing speed ranges of up to 60:1 Variable Torque, 10:1 Constant Torque.

Model
HP
RPM
Enclosure
Frame
Frequency
Voltage
Efficiency
3/46SDBA44A-P 0.75 1200 TEFC 143TC 60 230/460 NEMA PREMIUM
3/46SDBC44A-P 0.75 1200 TEFC 143TC 60 575 NEMA PREMIUM
3/46SDBA42A-P 0.75 1200 TEFC 143TC 60 230/460 NEMA PREMIUM
3/46SDBC42A-P 0.75 1200 TEFC 143TC 60 575 NEMA PREMIUM
3/46SDBA41A-P 0.75 1200 TEFC 143T 60 230/460 NEMA PREMIUM
3/46SDBC41A-P 0.75 1200 TEFC 143T 60 575 NEMA PREMIUM
0014SDBA41A-P 1 1800 TEFC 143T 60 230/460 NEMA PREMIUM
0016SDBC44A-P 1 1200 TEFC 145TC 60 575 NEMA PREMIUM
0014SDBA44A-P 1 1800 TEFC 143TC 60 230/460 NEMA PREMIUM
0014SDBC44A-P 1 1800 TEFC 143TC 60 575 NEMA PREMIUM
0016SDBA44A-P 1 1200 TEFC 145TC 60 230/460 NEMA PREMIUM
0014SDBA42A-P 1 1800 TEFC 143TC 60 230/460 NEMA PREMIUM
0014SDBC42A-P 1 1800 TEFC 143TC 60 575 NEMA PREMIUM
0016SDBA42A-P 1 1200 TEFC 145TC 60 230/460 NEMA PREMIUM
0016SDBC42A-P 1 1200 TEFC 145TC 60 575 NEMA PREMIUM
0014SDBC41A-P 1 1800 TEFC 143T 60 575 NEMA PREMIUM
0016SDBA41A-P 1 1200 TEFC 145T 60 230/460 NEMA PREMIUM
0016SDBC41A-P 1 1200 TEFC 145T 60 575 NEMA PREMIUM
Y154SDBA44A-P 1.5 1800 TEFC 145TC 60 230/460 NEMA PREMIUM
Y154SDBC44A-P 1.5 1800 TEFC 145TC 60 575 NEMA PREMIUM
Y156SDBA44A-P 1.5 1200 TEFC 182TC 60 230/460 NEMA PREMIUM
Y156SDBC44A-P 1.5 1200 TEFC 182TC 60 575 NEMA PREMIUM
Y154SDBA42A-P 1.5 1800 TEFC 145TC 60 230/460 NEMA PREMIUM
Y154SDBC42A-P 1.5 1800 TEFC 145TC 60 575 NEMA PREMIUM
Y156SDBA42A-P 1.5 1200 TEFC 182TC 60 230/460 NEMA PREMIUM
Y156SDBC42A-P 1.5 1200 TEFC 182TC 60 575 NEMA PREMIUM
Y154SDBA41A-P 1.5 1800 TEFC 145T 60 230/460 NEMA PREMIUM
Y154SDBC41A-P 1.5 1800 TEFC 145T 60 575 NEMA PREMIUM
Y156SDBA41A-P 1.5 1200 TEFC 182T 60 230/460 NEMA PREMIUM
Y156SDBC41A-P 1.5 1200 TEFC 182T 60 575 NEMA PREMIUM
0024SDBA44A-P 2 1800 TEFC 145TC 60 230/460 NEMA PREMIUM
0024SDBC44A-P 2 1800 TEFC 145TC 60 575 NEMA PREMIUM
0026SDBA44A-P 2 1200 TEFC 184TC 60 230/460 NEMA PREMIUM
0026SDBC44A-P 2 1200 TEFC 184TC 60 575 NEMA PREMIUM
0024SDBA42A-P 2 1800 TEFC 145TC 60 230/460 NEMA PREMIUM
0024SDBC42A-P 2 1800 TEFC 145TC 60 575 NEMA PREMIUM
0026SDBA42A-P 2 1200 TEFC 184TC 60 230/460 NEMA PREMIUM
0026SDBC42A-P 2 1200 TEFC 184TC 60 575 NEMA PREMIUM
0024SDBA41A-P 2 1800 TEFC 145T 60 230/460 NEMA PREMIUM
0024SDBC41A-P 2 1800 TEFC 145T 60 575 NEMA PREMIUM
0026SDBA41A-P 2 1200 TEFC 184T 60 230/460 NEMA PREMIUM
0026SDBC41A-P 2 1200 TEFC 184T 60 575 NEMA PREMIUM
0034SDBA44A-P 3 1800 TEFC 182TC 60 230/460 NEMA PREMIUM
0034SDBC44A-P 3 1800 TEFC 182TC 60 575 NEMA PREMIUM
0036SDBA44A-P 3 1200 TEFC 213TC 60 230/460 NEMA PREMIUM
0036SDBC44A-P 3 1200 TEFC 213TC 60 575 NEMA PREMIUM
0036SDBA41A-P 3 1200 TEFC 213T 60 230/460 NEMA PREMIUM
0034SDBA42A-P 3 1800 TEFC 182TC 60 230/460 NEMA PREMIUM
0034SDBC42A-P 3 1800 TEFC 182TC 60 575 NEMA PREMIUM
0036SDBA42A-P 3 1200 TEFC 213TC 60 230/460 NEMA PREMIUM
0036SDBC42A-P 3 1200 TEFC 213TC 60 575 NEMA PREMIUM
0034SDBA41A-P 3 1800 TEFC 182T 60 230/460 NEMA PREMIUM
0034SDBC41A-P 3 1800 TEFC 182T 60 575 NEMA PREMIUM
0036SDBC41A-P 3 1200 TEFC 213T 60 575 NEMA PREMIUM
0054SDBA41A-P 5 1800 TEFC 184T 60 230/460 NEMA PREMIUM
0054SDBC41A-P 5 1800 TEFC 184T 60 575 NEMA PREMIUM
0056SDBA41A-P 5 1200 TEFC 215T 60 230/460 NEMA PREMIUM
0056SDBC41A-P 5 1200 TEFC 215T 60 575 NEMA PREMIUM
0054SDBA44A-P 5 1800 TEFC 184TC 60 230/460 NEMA PREMIUM
0054SDBC44A-P 5 1800 TEFC 184TC 60 575 NEMA PREMIUM
0056SDBA44A-P 5 1200 TEFC 215TC 60 230/460 NEMA PREMIUM
0056SDBC44A-P 5 1200 TEFC 215TC 60 575 NEMA PREMIUM
0054SDBA42A-P 5 1800 TEFC 184TC 60 230/460 NEMA PREMIUM
0054SDBC42A-P 5 1800 TEFC 184TC 60 575 NEMA PREMIUM
0056SDBA42A-P 5 1200 TEFC 215TC 60 230/460 NEMA PREMIUM
0056SDBC42A-P 5 1200 TEFC 215TC 60 575 NEMA PREMIUM
Y754SDBA44A-P 7.5 1800 TEFC 213TC 60 230/460 NEMA PREMIUM
Y754SDBC44A-P 7.5 1800 TEFC 213TC 60 575 NEMA PREMIUM
Y756SDBA44A-P 7.5 1200 TEFC 254TC 60 230/460 NEMA PREMIUM
Y756SDBC44A-P 7.5 1200 TEFC 254TC 60 575 NEMA PREMIUM
Y754SDBA42A-P 7.5 1800 TEFC 213TC 60 230/460 NEMA PREMIUM
Y754SDBA41A-P 7.5 1800 TEFC 213T 60 230/460 NEMA PREMIUM
Y754SDBC41A-P 7.5 1800 TEFC 213T 60 575 NEMA PREMIUM
Y754SDBC42A-P 7.5 1800 TEFC 213TC 60 575 NEMA PREMIUM
Y756SDBA42A-P 7.5 1200 TEFC 254TC 60 230/460 NEMA PREMIUM
Y756SDBC42A-P 7.5 1200 TEFC 254TC 60 575 NEMA PREMIUM
Y756SDBA41A-P 7.5 1200 TEFC 254T 60 230/460 NEMA PREMIUM
Y756SDBC41A-P 7.5 1200 TEFC 254T 60 575 NEMA PREMIUM
0104SDBC41A-P 10 1800 TEFC 215T 60 575 NEMA PREMIUM
0106SDBA41A-P 10 1200 TEFC 256T 60 230/460 NEMA PREMIUM
0106SDBC41A-P 10 1200 TEFC 256T 60 575 NEMA PREMIUM
0104SDBA41A-P 10 1800 TEFC 215T 60 230/460 NEMA PREMIUM
0104SDBA44A-P 10 1800 TEFC 215TC 60 230/460 NEMA PREMIUM
0104SDBC44A-P 10 1800 TEFC 215TC 60 575 NEMA PREMIUM
0106SDBA44A-P 10 1200 TEFC 256TC 60 230/460 NEMA PREMIUM
0106SDBC44A-P 10 1200 TEFC 256TC 60 575 NEMA PREMIUM
0104SDBA42A-P 10 1800 TEFC 215TC 60 230/460 NEMA PREMIUM
0104SDBC42A-P 10 1800 TEFC 215TC 60 575 NEMA PREMIUM
0106SDBA42A-P 10 1200 TEFC 256TC 60 230/460 NEMA PREMIUM
0106SDBC42A-P 10 1200 TEFC 256TC 60 575 NEMA PREMIUM
0154SDBA41A-P 15 1800 TEFC 254T 60 230/460 NEMA PREMIUM
0154SDBC41A-P 15 1800 TEFC 254T 60 575 NEMA PREMIUM
0156SDBA41A-P 15 1200 TEFC 284T 60 230/460 NEMA PREMIUM
0156SDBC41A-P 15 1200 TEFC 284T 60 575 NEMA PREMIUM
0154SDBA44A-P 15 1800 TEFC 254TC 60 230/460 NEMA PREMIUM
0154SDBC44A-P 15 1800 TEFC 254TC 60 575 NEMA PREMIUM
0156SDBA44A-P 15 1200 TEFC 284TC 60 230/460 NEMA PREMIUM
0156SDBC44A-P 15 1200 TEFC 284TC 60 575 NEMA PREMIUM
0154SDBA42A-P 15 1800 TEFC 254TC 60 230/460 NEMA PREMIUM
0154SDBC42A-P 15 1800 TEFC 254TC 60 575 NEMA PREMIUM
0156SDBA42A-P 15 1200 TEFC 284TC 60 230/460 NEMA PREMIUM
0156SDBC42A-P 15 1200 TEFC 284TC 60 575 NEMA PREMIUM
0204SDBA42A-P 20 1800 TEFC 256TC 60 230/460 NEMA PREMIUM
0204SDBA41A-P 20 1800 TEFC 256T 60 230/460 NEMA PREMIUM
0204SDBC41A-P 20 1800 TEFC 256T 60 575 NEMA PREMIUM
0206SDBA41A-P 20 1200 TEFC 286T 60 230/460 NEMA PREMIUM
0206SDBC41A-P 20 1200 TEFC 286T 60 575 NEMA PREMIUM
0204SDBA44A-P 20 1800 TEFC 256TC 60 230/460 NEMA PREMIUM
0204SDBC44A-P 20 1800 TEFC 256TC 60 575 NEMA PREMIUM
0206SDBA44A-P 20 1200 TEFC 286TC 60 230/460 NEMA PREMIUM
0206SDBC44A-P 20 1200 TEFC 286TC 60 575 NEMA PREMIUM
0204SDBC42A-P 20 1800 TEFC 256TC 60 575 NEMA PREMIUM
0206SDBA42A-P 20 1200 TEFC 286TC 60 230/460 NEMA PREMIUM
0206SDBC42A-P 20 1200 TEFC 286TC 60 575 NEMA PREMIUM
0254SDBA44A-P 25 1800 TEFC 284TC 60 230/460 NEMA PREMIUM
0254SDBC44A-P 25 1800 TEFC 284TC 60 575 NEMA PREMIUM
0254SDBC42A-P 25 1800 TEFC 284TC 60 575 NEMA PREMIUM
0254SDBA41A-P 25 1800 TEFC 284T 60 230/460 NEMA PREMIUM
0254SDBC41A-P 25 1800 TEFC 284T 60 575 NEMA PREMIUM
0254SDBA42A-P 25 1800 TEFC 284TC 60 230/460 NEMA PREMIUM
0304SDBA44A-P 30 1800 TEFC 286TC 60 230/460 NEMA PREMIUM
0304SDBC44A-P 30 1800 TEFC 286TC 60 575 NEMA PREMIUM
0304SDBA42A-P 30 1800 TEFC 286TC 60 230/460 NEMA PREMIUM
0304SDBC42A-P 30 1800 TEFC 286TC 60 575 NEMA PREMIUM
0304SDBA41A-P 30 1800 TEFC 286T 60 230/460 NEMA PREMIUM
0304SDBC41A-P 30 1800 TEFC 286T 60 575 NEMA PREMIUM

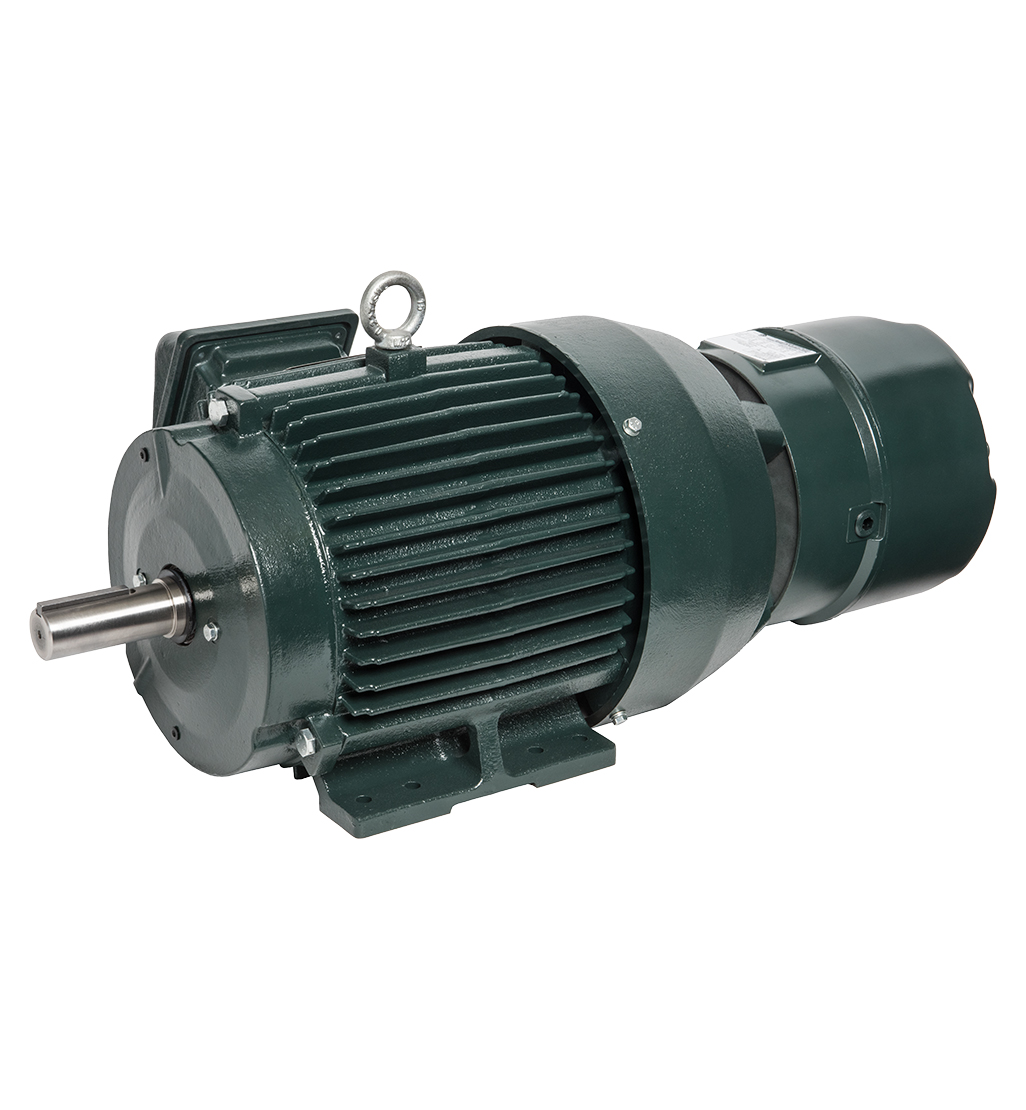

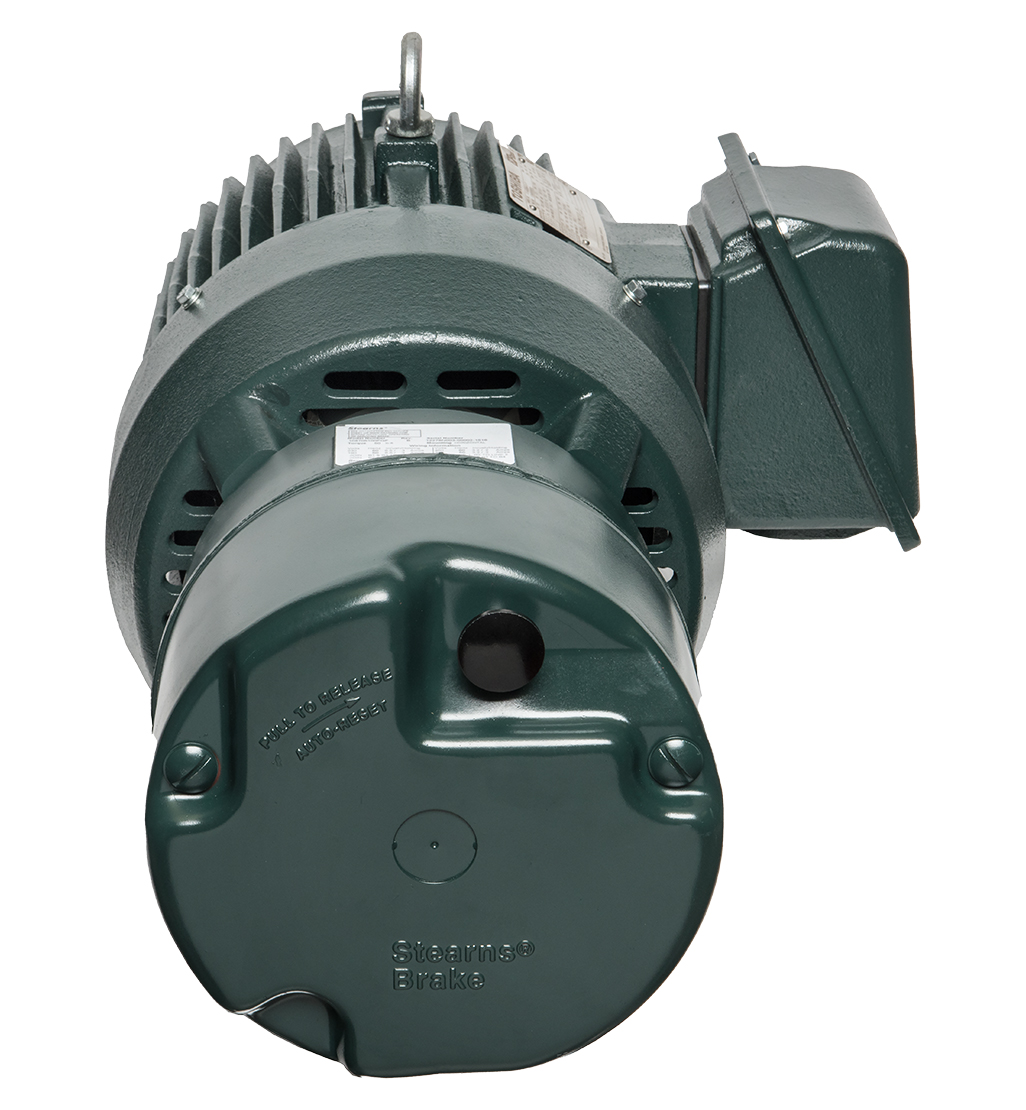

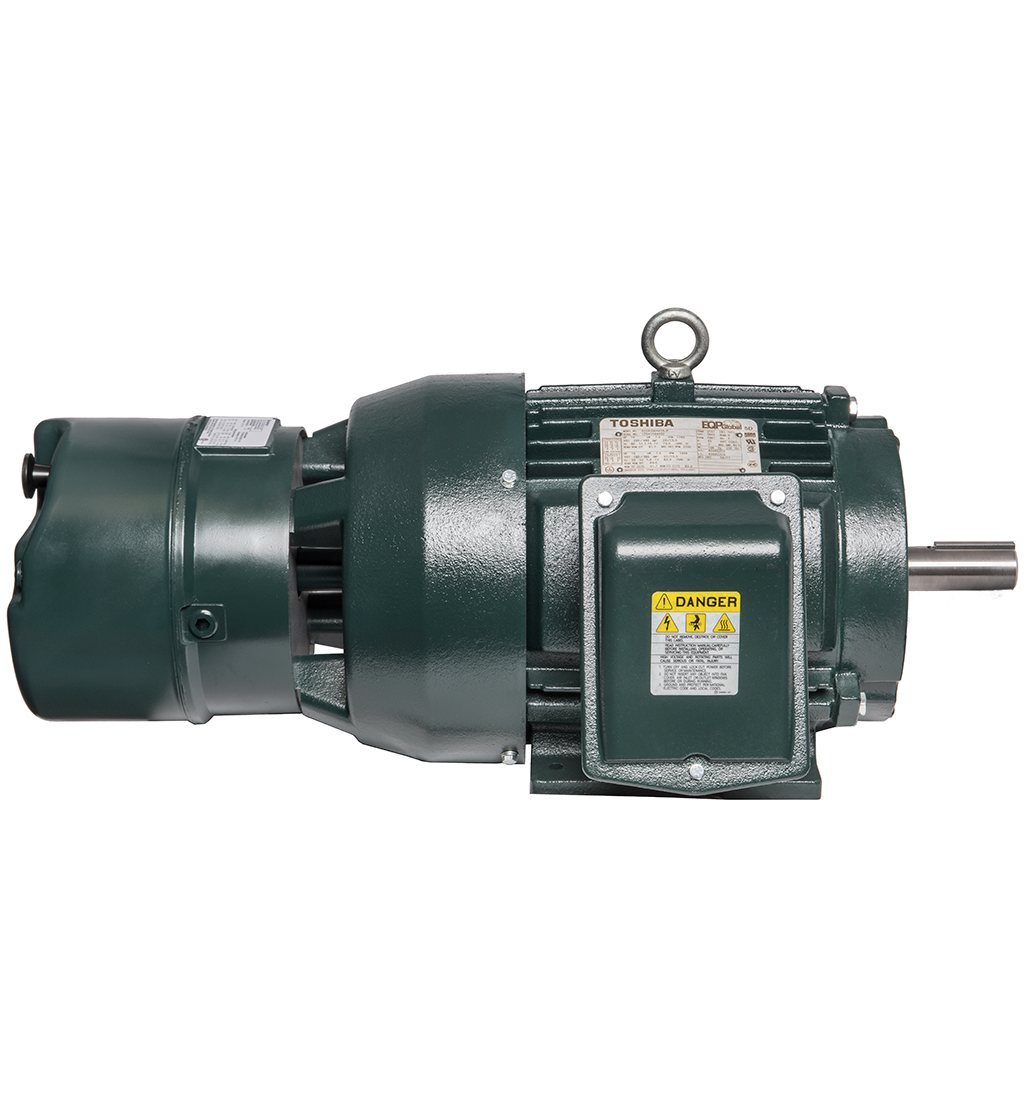

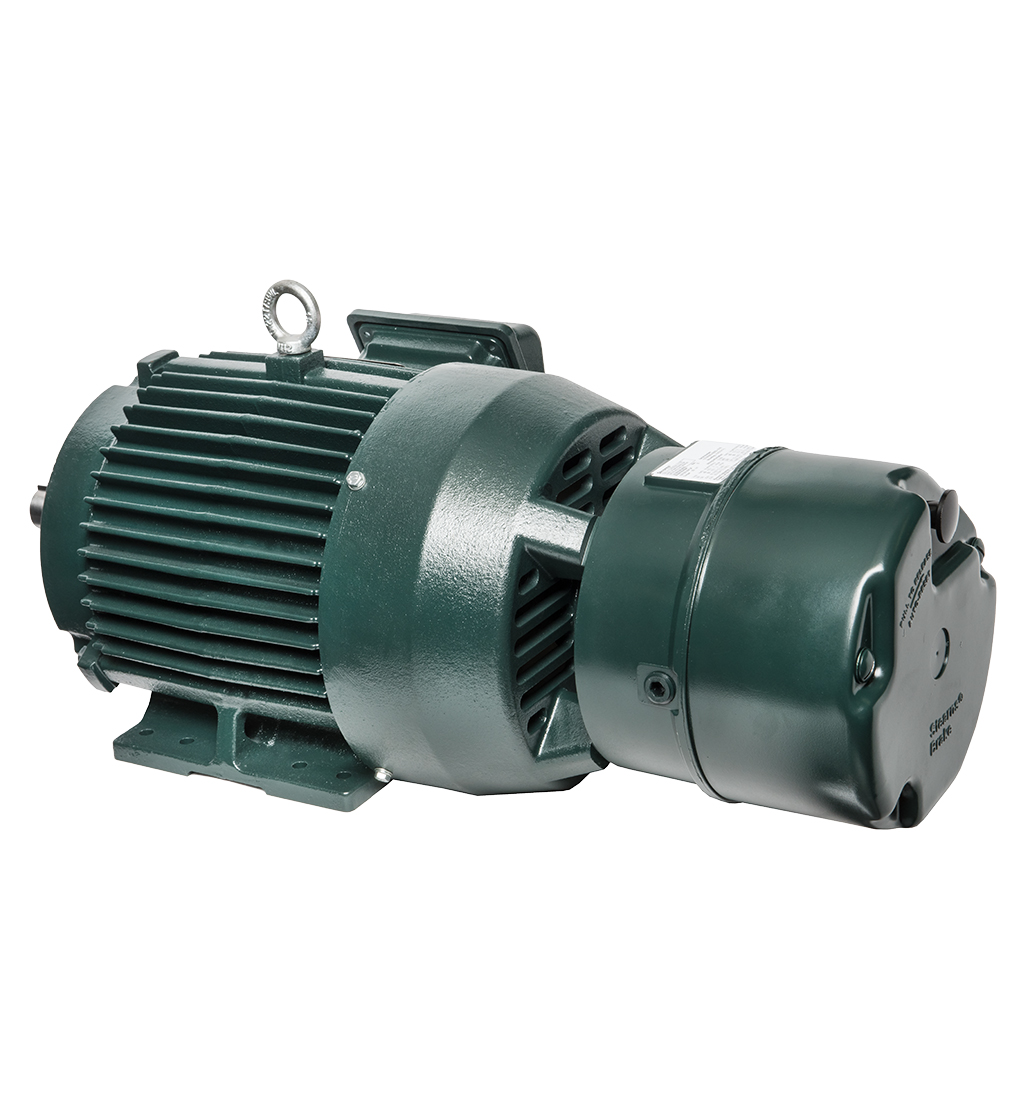

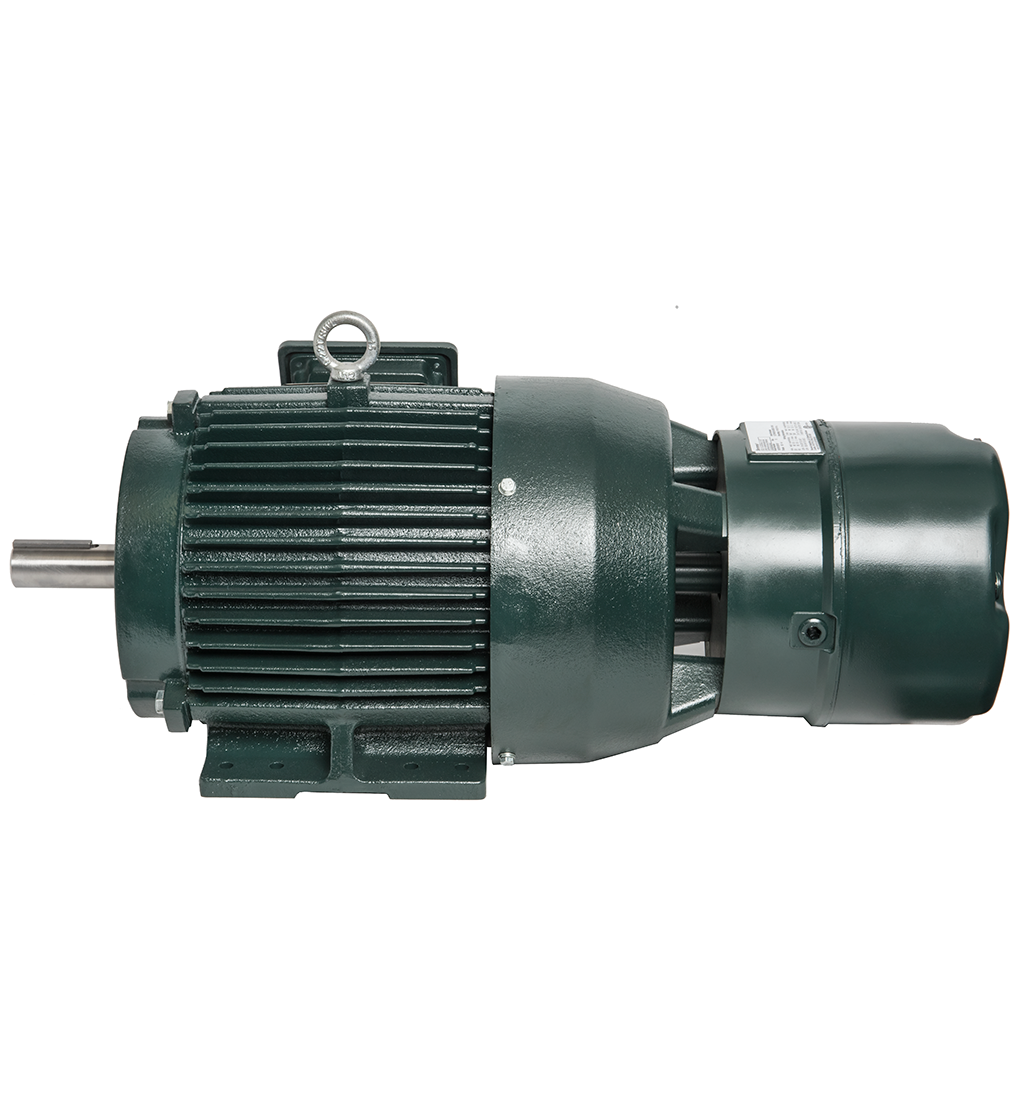

Product Image Gallery
