EQP Global® Cooling Tower

Related Information
Resource Library | Distributor Portal | Training

Available in ¾ to 75 horsepower (HP), the EQP Global Series Cooling Tower motor features severe duty IP56 protection and is designed to operate in 100% humidity. Enclosure options include totally enclosed fan cooled (TEFC) and totally enclosed air over (TEAO) designs for all operating conditions. Additional features include:

  • Ingress Protection IP56 for Wet & Humid Environments
  • 1800 & 1200 RPM Designs
  • 230/460 or 575 V 3-Phase 60 Hz
  • Up to 365T NEMA® Frame
  • Suitable for Inverter Duty
Application Specific Design Offers horizontal or vertical mounting provisions, ingress protection, and corrosion resistant epoxy paint system for protection in wet and humid environments.

Ingress Protection

Umbrella & V-ring seals used on the DE and ODE of the shaft along with gasket sealant between the frame and bearing brackets provide an IP56 protection against 100% humidity.

Multi Drain Provisions Multiple drain plug provisions on brackets, frame, and conduit box allows drainage for all possible vertical and horizontal mounting positions.
Inverter Duty Rated Designed for use with an adjustable speed drive that can lead to energy savings when run at optimum fan speed. The insulation system meets NEMA MG1 Part 31. Providing speed ranges of up to 60:1 Variable Torque, 10:1 Constant Torque.

Model
HP
RPM
Enclosure
Frame
Frequency
Voltage
Efficiency
0014FAGC41A-P 1 1800 TEAO 143T 60 575 NEMA PREMIUM
0014FAGR41A-P 1 1800 TEAO 143T 60 230/460 NEMA PREMIUM
0014SDGC41A-P 1 1800 TEFC 143T 60 575 NEMA PREMIUM
0014SDGR41A-P 1 1800 TEFC 143T 60 230/460 NEMA PREMIUM
0016FAGC41A-P 1 1200 TEAO 145T 60 575 NEMA PREMIUM
0016FAGR41A-P 1 1200 TEAO 145T 60 230/460 NEMA PREMIUM
0016SDGC41A-P 1 1200 TEFC 145T 60 575 NEMA PREMIUM
0016SDGR41A-P 1 1200 TEFC 145T 60 230/460 NEMA PREMIUM
Y154FAGC41A-P 1.5 1800 TEAO 145T 60 575 NEMA PREMIUM
Y154FAGR41A-P 1.5 1800 TEAO 145T 60 230/460 NEMA PREMIUM
Y154SDGC41A-P 1.5 1800 TEFC 145T 60 575 NEMA PREMIUM
Y154SDGR41A-P 1.5 1800 TEFC 145T 60 230/460 NEMA PREMIUM
Y156FAGC41A-P 1.5 1200 TEAO 182T 60 575 NEMA PREMIUM
Y156FAGR41A-P 1.5 1200 TEAO 182T 60 230/460 NEMA PREMIUM
Y156SDGC41A-P 1.5 1200 TEFC 182T 60 575 NEMA PREMIUM
Y156SDGR41A-P 1.5 1200 TEFC 182T 60 230/460 NEMA PREMIUM
0024FAGC41A-P 2 1800 TEAO 145T 60 575 NEMA PREMIUM
0024FAGR41A-P 2 1800 TEAO 145T 60 230/460 NEMA PREMIUM
0024SDGC41A-P 2 1800 TEFC 145T 60 575 NEMA PREMIUM
0024SDGR41A-P 2 1800 TEFC 145T 60 230/460 NEMA PREMIUM
0026FAGR41A-P 2 1200 TEAO 184T 60 230/460 NEMA PREMIUM
0026SDGC41A-P 2 1200 TEFC 184T 60 575 NEMA PREMIUM
0026SDGR41A-P 2 1200 TEFC 184T 60 230/460 NEMA PREMIUM
0026FAGC41A-P 3 1800 TEAO 182T 60 575 NEMA PREMIUM
0034FAGR41A-P 3 1800 TEAO 182T 60 230/460 NEMA PREMIUM
0034SDGR41A-P 3 1800 TEFC 182T 60 230/460 NEMA PREMIUM
0036FAGC41A-P 3 1200 TEAO 213T 60 575 NEMA PREMIUM
0036FAGR41A-P 3 1200 TEAO 213T 60 230/460 NEMA PREMIUM
0036SDGC41A-P 3 1200 TEFC 213T 60 575 NEMA PREMIUM
0036SDGR41A-P 3 1200 TEFC 213T 60 230/460 NEMA PREMIUM
0034FAGC41A-P 3 1800 TEAO 182T 60 575 NEMA PREMIUM
0034SDGC41A-P 3 1800 TEFC 182T 60 575 NEMA PREMIUM
0054FAGC41A-P 5 1800 TEAO 184T 60 575 NEMA PREMIUM
0054FAGR41A-P 5 1800 TEAO 184T 60 230/460 NEMA PREMIUM
0054SDGC41A-P 5 1800 TEFC 184T 60 575 NEMA PREMIUM
0054SDGR41A-P 5 1800 TEFC 184T 60 230/460 NEMA PREMIUM
0056FAGC41A-P 5 1200 TEAO 215T 60 575 NEMA PREMIUM
0056FAGR41A-P 5 1200 TEAO 215T 60 230/460 NEMA PREMIUM
0056SDGC41A-P 5 1200 TEFC 215T 60 575 NEMA PREMIUM
0056SDGR41A-P 5 1200 TEFC 215T 60 230/460 NEMA PREMIUM
Y754FAGC41A-P 7.5 1800 TEAO 213T 60 575 NEMA PREMIUM
Y754FAGR41A-P 7.5 1800 TEAO 213T 60 230/460 NEMA PREMIUM
Y754SDGC41A-P 7.5 1800 TEFC 213T 60 575 NEMA PREMIUM
Y754SDGR41A-P 7.5 1800 TEFC 213T 60 230/460 NEMA PREMIUM
Y756FAGC41A-P 7.5 1200 TEAO 254T 60 575 NEMA PREMIUM
Y756FAGR41A-P 7.5 1200 TEAO 254T 60 230/460 NEMA PREMIUM
Y756SDGC41A-P 7.5 1200 TEFC 254T 60 575 NEMA PREMIUM
Y756SDGR41A-P 7.5 1200 TEFC 254T 60 230/460 NEMA PREMIUM
0106SDGC41A-P 10 1200 TEFC 256T 60 575 NEMA PREMIUM
0104FAGC41A-P 10 1800 TEAO 215T 60 575 NEMA PREMIUM
0104FAGR41A-P 10 1800 TEAO 215T 60 230/460 NEMA PREMIUM
0104SDGC41A-P 10 1800 TEFC 215T 60 575 NEMA PREMIUM
0104SDGR41A-P 10 1800 TEFC 215T 60 230/460 NEMA PREMIUM
0106FAGC41A-P 10 1200 TEAO 256T 60 575 NEMA PREMIUM
0106FAGR41A-P 10 1200 TEAO 256T 60 230/460 NEMA PREMIUM
0106SDGR41A-P 10 1200 TEFC 256T 60 230/460 NEMA PREMIUM
0154FAGC41A-P 15 1800 TEAO 254T 60 575 NEMA PREMIUM
0154FAGR41A-P 15 1800 TEAO 254T 60 230/460 NEMA PREMIUM
0154SDGC41A-P 15 1800 TEFC 254T 60 575 NEMA PREMIUM
0154SDGR41A-P 15 1800 TEFC 254T 60 230/460 NEMA PREMIUM
0156FAGC41A-P 15 1200 TEAO 284T 60 575 NEMA PREMIUM
0156FAGR41A-P 15 1200 TEAO 284T 60 230/460 NEMA PREMIUM
0156SDGC41A-P 15 1200 TEFC 284T 60 575 NEMA PREMIUM
0156SDGR41A-P 15 1200 TEFC 284T 60 230/460 NEMA PREMIUM
0204FAGC41A-P 20 1800 TEAO 256T 60 575 NEMA PREMIUM
0204FAGR41A-P 20 1800 TEAO 256T 60 230/460 NEMA PREMIUM
0204SDGC41A-P 20 1800 TEFC 256T 60 575 NEMA PREMIUM
0204SDGR41A-P 20 1800 TEFC 256T 60 230/460 NEMA PREMIUM
0206FAGC41A-P 20 1200 TEAO 286T 60 575 NEMA PREMIUM
0206FAGR41A-P 20 1200 TEAO 286T 60 230/460 NEMA PREMIUM
0206SDGC41A-P 20 1200 TEFC 286T 60 575 NEMA PREMIUM
0206SDGR41A-P 20 1200 TEFC 286T 60 230/460 NEMA PREMIUM
0254FAGC41A-P 25 1800 TEAO 284T 60 575 NEMA PREMIUM
0254FAGR41A-P 25 1800 TEAO 284T 60 230/460 NEMA PREMIUM
0254SDGC41A-P 25 1800 TEFC 284T 60 575 NEMA PREMIUM
0254SDGR41A-P 25 1800 TEFC 284T 60 230/460 NEMA PREMIUM
0256FAGC41A-P 25 1200 TEAO 324T 60 575 NEMA PREMIUM
0256FAGR41A-P 25 1200 TEAO 324T 60 230/460 NEMA PREMIUM
0256SDGC41A-P 25 1200 TEFC 324T 60 575 NEMA PREMIUM
0256SDGR41A-P 25 1200 TEFC 324T 60 230/460 NEMA PREMIUM
0304FAGC41A-P 30 1800 TEAO 286T 60 575 NEMA PREMIUM
0304FAGR41A-P 30 1800 TEAO 286T 60 230/460 NEMA PREMIUM
0304SDGC41A-P 30 1800 TEFC 286T 60 575 NEMA PREMIUM
0304SDGR41A-P 30 1800 TEFC 286T 60 230/460 NEMA PREMIUM
0306FAGC41A-P 30 1200 TEAO 326T 60 575 NEMA PREMIUM
0306FAGR41A-P 30 1200 TEAO 326T 60 230/460 NEMA PREMIUM
0306SDGC41A-P 30 1200 TEFC 326T 60 575 NEMA PREMIUM
0306SDGR41A-P 30 1200 TEFC 326T 60 230/460 NEMA PREMIUM
0404FAGC41A-P 40 1800 TEAO 324T 60 575 NEMA PREMIUM
0404FAGR41A-P 40 1800 TEAO 324T 60 230/460 NEMA PREMIUM
0404SDGC41A-P 40 1800 TEFC 324T 60 575 NEMA PREMIUM
0404SDGR41A-P 40 1800 TEFC 324T 60 230/460 NEMA PREMIUM
0406FAGC41A-P 40 1200 TEAO 364T 60 575 NEMA PREMIUM
0406FAGR41A-P 40 1200 TEAO 364T 60 230/460 NEMA PREMIUM
0406SDGC41A-P 40 1200 TEFC 364T 60 575 NEMA PREMIUM
0406SDGR41A-P 40 1200 TEFC 364T 60 230/460 NEMA PREMIUM
0504FAGC41A-P 50 1800 TEAO 326T 60 575 NEMA PREMIUM
0504FAGR41A-P 50 1800 TEAO 326T 60 230/460 NEMA PREMIUM
0504SDGC41A-P 50 1800 TEFC 326T 60 575 NEMA PREMIUM
0504SDGR41A-P 50 1800 TEFC 326T 60 230/460 NEMA PREMIUM
0506FAGC41A-P 50 1200 TEAO 365T 60 575 NEMA PREMIUM
0506FAGR41A-P 50 1200 TEAO 365T 60 230/460 NEMA PREMIUM
0506SDGC41A-P 50 1200 TEFC 365T 60 575 NEMA PREMIUM
0506SDGR41A-P 50 1200 TEFC 365T 60 230/460 NEMA PREMIUM
0604SDGR41A-P 60 1800 TEFC 364T 60 230/460 NEMA PREMIUM
0604FAGC41A-P 60 1800 TEAO 364T 60 575 NEMA PREMIUM
0604FAGR41A-P 60 1800 TEAO 364T 60 230/460 NEMA PREMIUM
0604SDGC41A-P 60 1800 TEFC 364T 60 575 NEMA PREMIUM
0754FAGC41A-P 75 1800 TEAO 365T 60 575 NEMA PREMIUM
0754FAGR41A-P 75 1800 TEAO 365T 60 230/460 NEMA PREMIUM
0754SDGC41A-P 75 1800 TEFC 365T 60 575 NEMA PREMIUM
0754SDGR41A-P 75 1800 TEFC 365T 60 230/460 NEMA PREMIUM

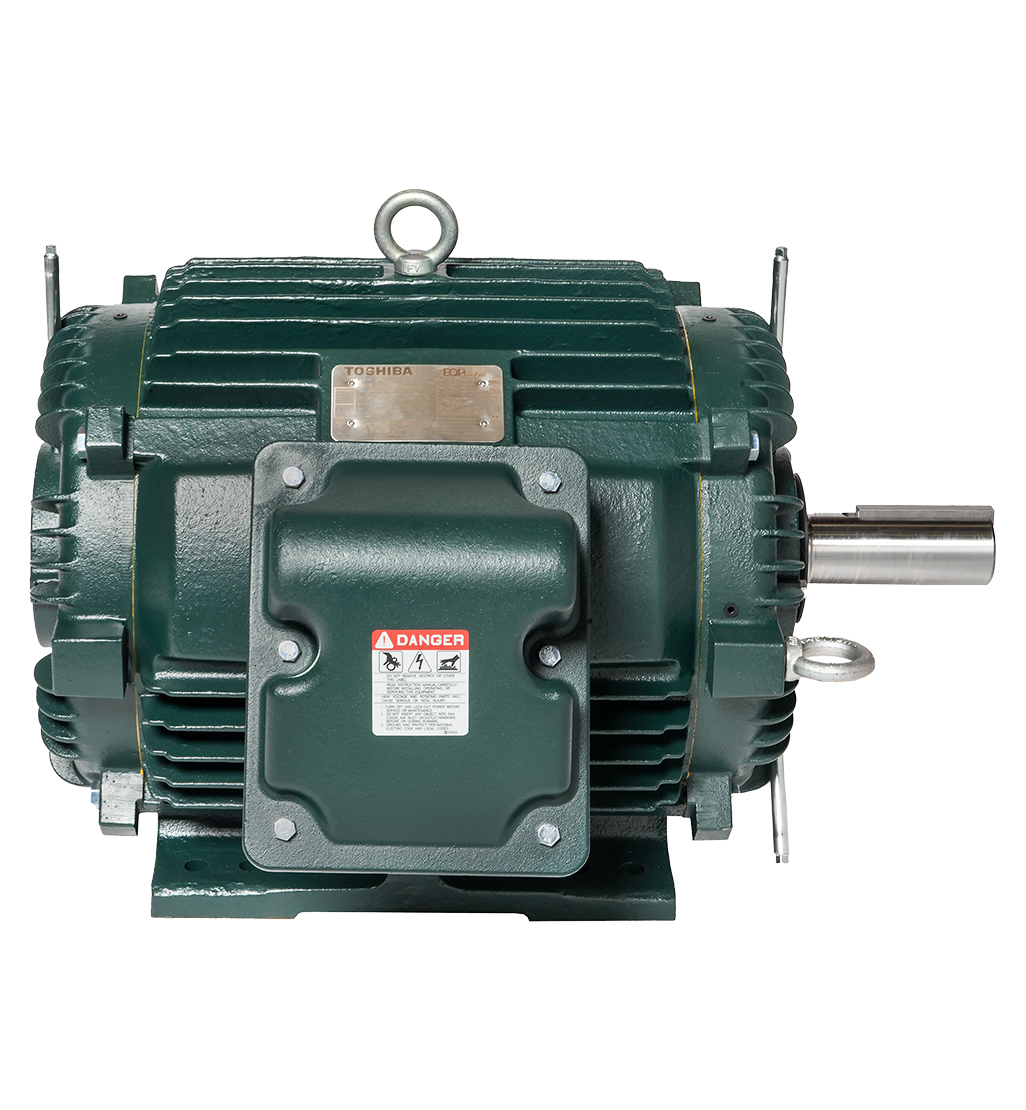

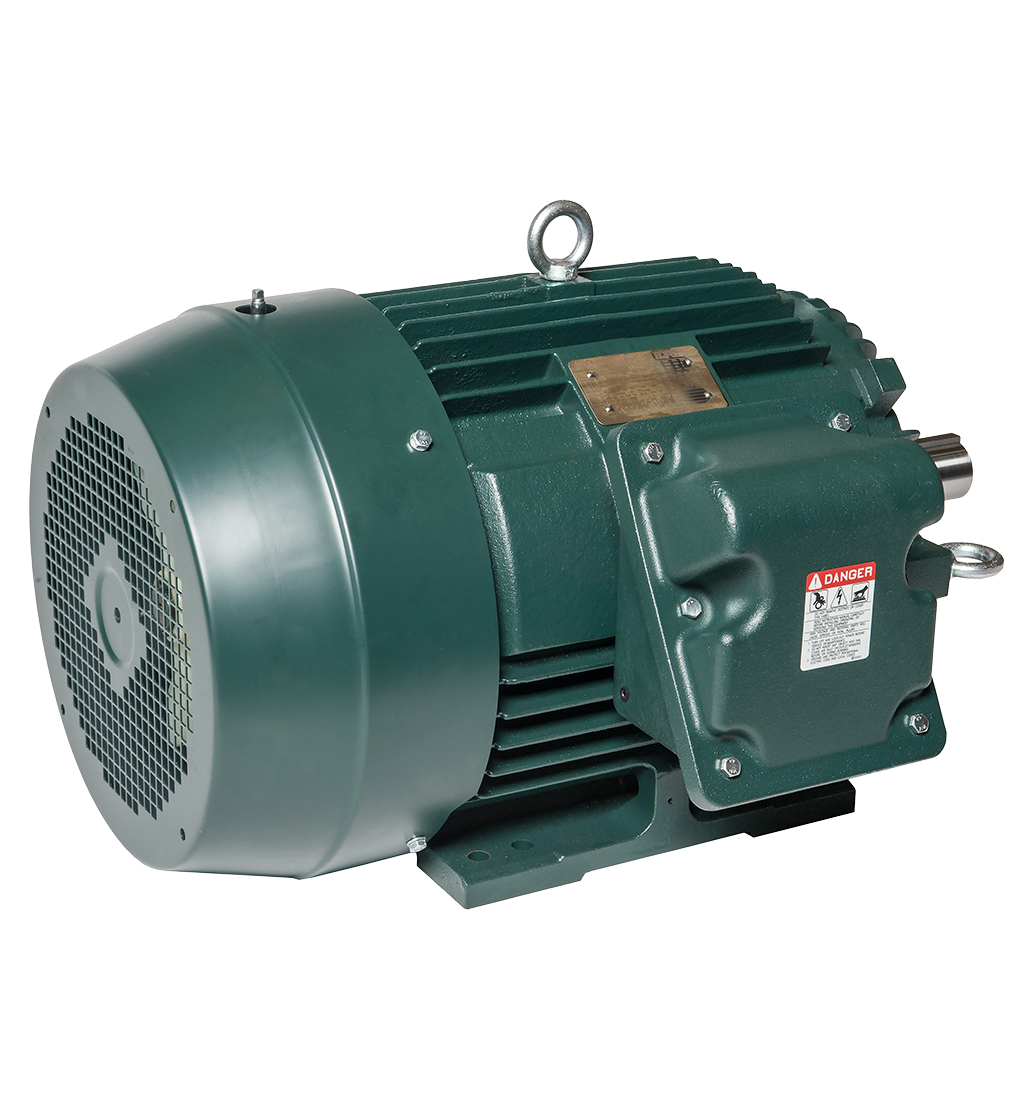

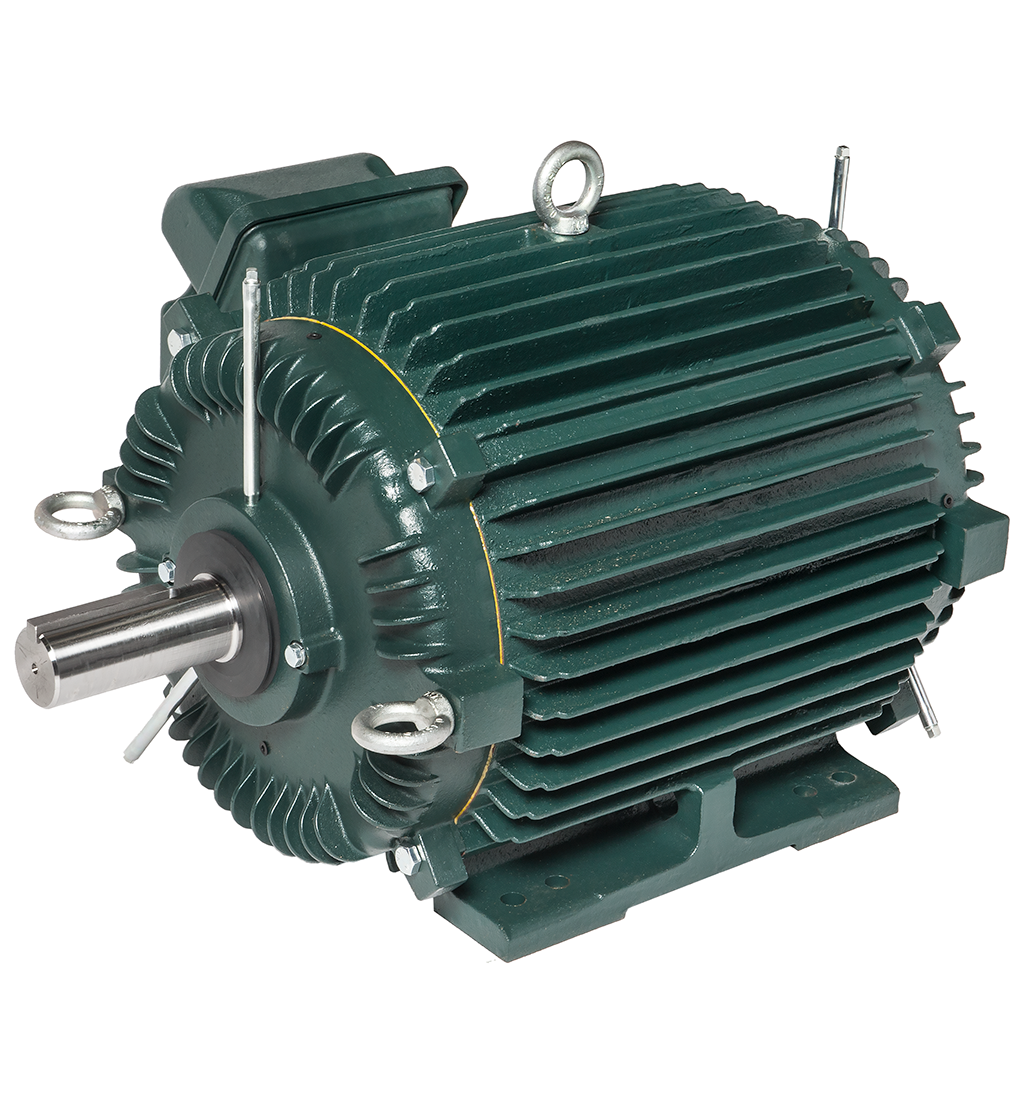

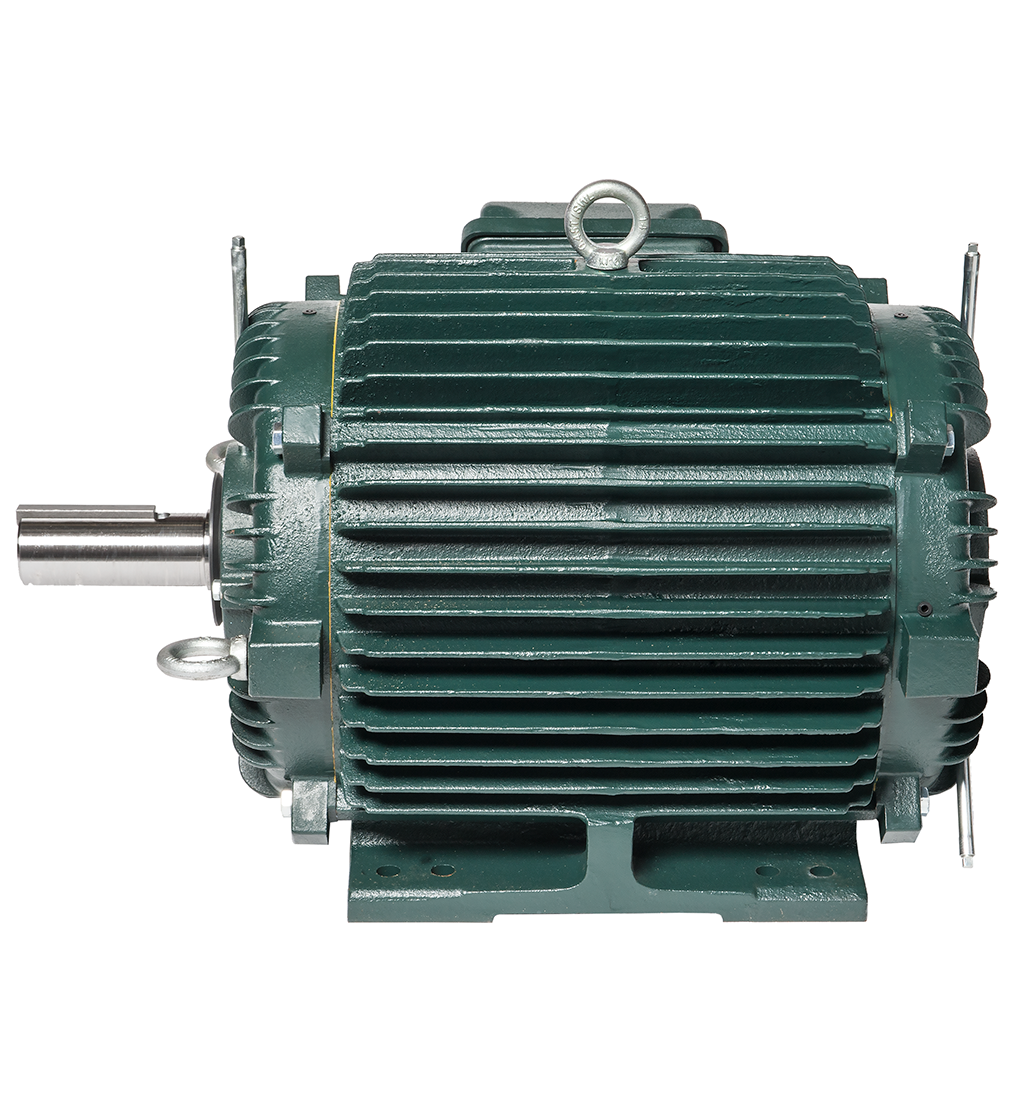

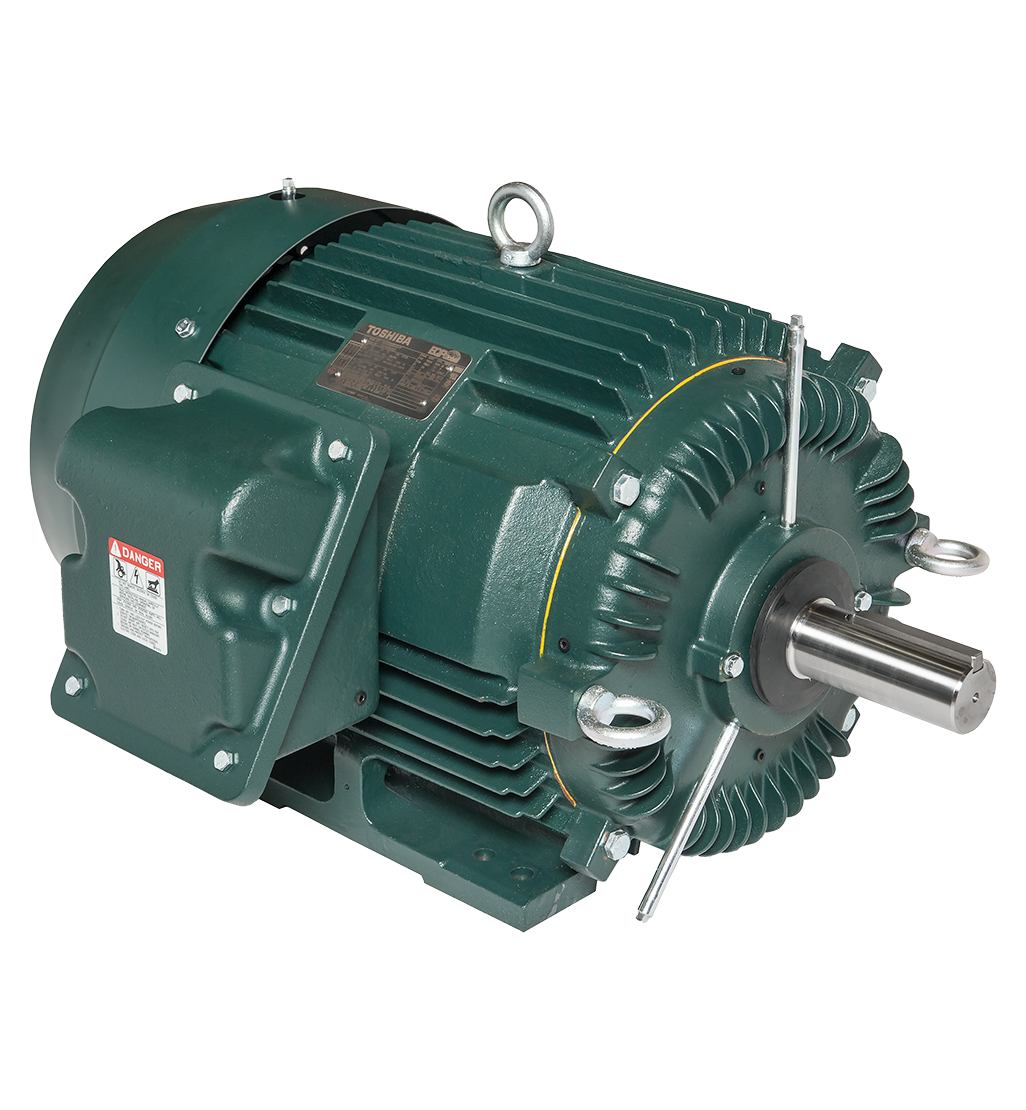

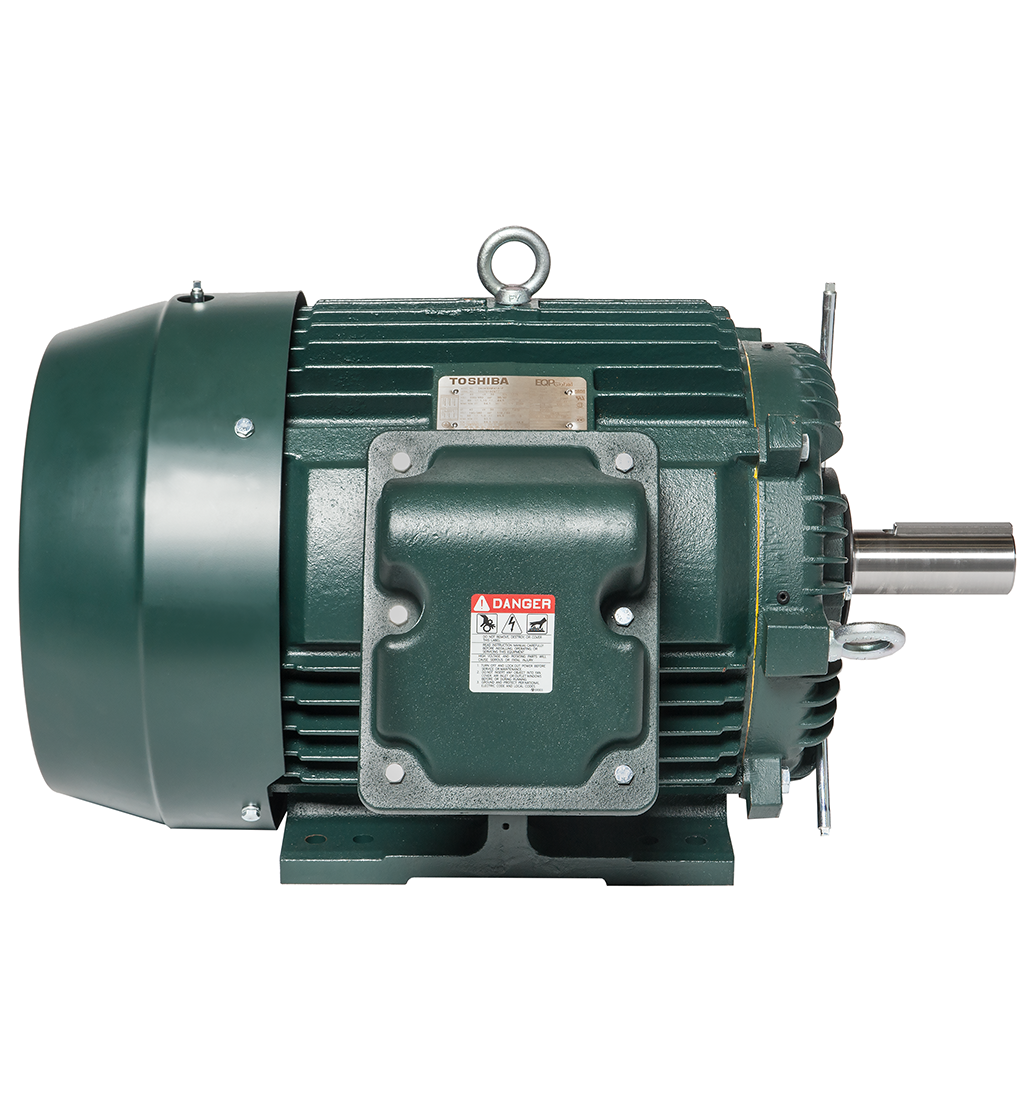

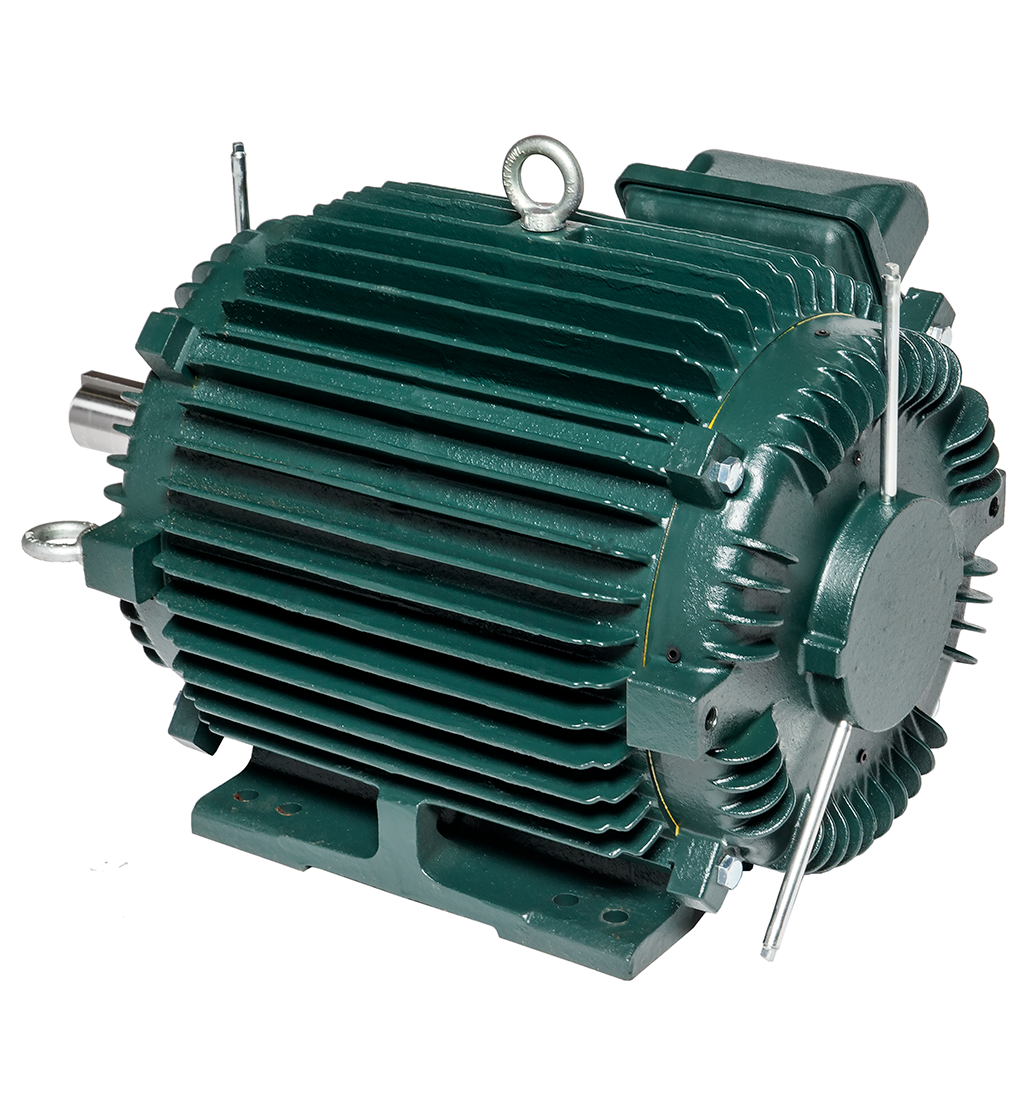

Product Image Gallery
