Totally Enclosed Air-to-Air Cooled

Medium Voltage Motors

Related Information
Resource Library | Distributor Portal | Training
Need a Quote? Have A Question?
Service Locator
Service Locator
Where to Buy
Where to Buy
Where to Buy
View Technical Downloads

The Totally Enclosed Air-to-Air Cooled (TEAAC) medium voltage motor series is designed for durability in harsh conditions. This product line offers some of the highest efficiency and torque in the industry while producing some of the lowest vibration in frames of this size – leading to a longer life and greater reliability.

Click for more information



Service Factor 1.15

Construction

Cast Iron Frame & Carbon Steel Heat Exchanger Tubes

Environment Suitable for Indoor & Outdoor Use
Sound Pressure < 90 dBa
Degree of Protection IP55



Model
HP
RPM
Enclosure
Frame
Frequency
Voltage
Efficiency
F4506WLF3I-C 450 1200 TEAAC T5010L 60 4000 High
F4508WLF3I-C 450 900 TEAAC T5012L 60 4000 High
F4508WLFLI-C 450 900 TEAAC T5012L 60 4000 High
4508TCAL11E-A 450 900 TEAAC 5812US 60 4000 High
4508TCAL11E-C 450 900 TEAAC 5812US 60 4000 High
F4506WLFLI-C 450 1200 TEAAC T5010L 60 4000 High
F5003WLF3I-C 500 3600 TEAAC T5010H 60 4000 High
F5004WLF3L-C 500 1800 TEAAC T5010L 60 4000 High
F5006WLF3I-C 500 1200 TEAAC T5010L 60 4000 High
F5008WLF3I-C 500 900 TEAAC T5012L 60 4000 High
F5004WLFLI-C 500 1800 TEAAC T5010L 60 4000 High
F5006WLFLI-C 500 1200 TEAAC T5010L 60 4000 High
F5008WLFLI-C 500 900 TEAAC T5012L 60 4000 High
5008TCAL11E-A 500 900 TEAAC 5812US 60 4000 High
5008TCAL11E-C 500 900 TEAAC 5812US 60 4000 High
F6003WLF3I-C 600 3600 TEAAC T5010H 60 4000 High
F6004WLF3I-C 600 1800 TEAAC T5010L 60 4000 High
F6006WLF3I-C 600 1200 TEAAC T5010L 60 4000 High
F6004WLFLI-C 600 1800 TEAAC T5010L 60 4000 High
F6006WLFLI-C 600 1200 TEAAC T5010L 60 4000 High
6008TCAL11E-A 600 900 TEAAC 5812US 60 4000 High
6008TCAL11E-C 600 900 TEAAC 5812US 60 4000 High
6006TCAL11E-A 600 1200 TEAAC 5812US 60 4000 High
6006TCAL11E-C 600 1200 TEAAC 5812US 60 4000 High
F6003WLFLI-C 600 3600 TEAAC T5010H 60 4000 High
F7003WLF3I-C 700 3600 TEAAC T5010H 60 4000 High
F7004WLF3I-C 700 1800 TEAAC T5010L 60 4000 High
F7008WLF3I-C 700 900 TEAAC T5012L 60 4000 High
F7004WLFLI-C 700 1800 TEAAC T5010L 60 4000 High
F7008WLFLI-C 700 900 TEAAC T5012L 60 4000 High
7006TCAL11E-A 700 1200 TEAAC 5812US 60 4000 High
7006TCAL11E-C 700 1200 TEAAC 5812US 60 4000 High
7005TCAL11E-A 700 1800 TEAAC 5812US 60 4000 High
7005TCAL11E-C 700 1800 TEAAC 5812US 60 4000 High
7003TCAL11F-A 700 3600 TEAAC 5812USS 60 4000 High
7003TCAL11F-C 700 3600 TEAAC 5812USS 60 4000 High
7007TCAL11E-CF 700 1200 TEAAC 6810/11/12US 60 4000 High
7005TCQL11E-A 700 1800 TEAAC 5812US 60 4000 High
7005TCQL11E-C 700 1800 TEAAC 5812US 60 4000 High
7003TCQL11F-A 700 3600 TEAAC 5812USS 60 4000 High
7003TCQL11F-C 700 3600 TEAAC 5812USS 60 4000 High
7007TCQL11E-CF 700 1200 TEAAC 6810/11/12US 60 4000 High
F7003WLFLI-C 700 3600 TEAAC T5010H 60 4000 High
F8003WLF3I-C 800 3600 TEAAC T5010H 60 4000 High
F8004WLF3I-C 800 1800 TEAAC T5010L 60 4000 High
F8006WLF3I-C 800 1200 TEAAC T6808L 60 4000 High
F8008WLF3I-C 800 900 TEAAC T6808L 60 4000 High
F8004WLFLI-C 800 1800 TEAAC T5010L 60 4000 High
F8006WLFLI-C 800 1200 TEAAC T6808L 60 4000 High
F8008WLFLI-C 800 900 TEAAC T6808L 60 4000 High
8005TCAL11E-A 800 1800 TEAAC 5812US 60 4000 High
8005TCAL11E-C 800 1800 TEAAC 5812US 60 4000 High
8003TCAL11F-A 800 3600 TEAAC 5812USS 60 4000 High
8003TCAL11F-C 800 3600 TEAAC 5812USS 60 4000 High
8007TCAL11E-C 800 1200 TEAAC 6810/11/12US 60 4000 High
8005TCQL11E-A 800 1800 TEAAC 5812US 60 4000 High
8005TCQL11E-C 800 1800 TEAAC 5812US 60 4000 High
8003TCQL11F-A 800 3600 TEAAC 5812USS 60 4000 High
8003TCQL11F-C 800 3600 TEAAC 5812USS 60 4000 High
8007TCQL11E-C 800 1200 TEAAC 6810/11/12US 60 4000 High
F8003WLFLI-C 800 3600 TEAAC T5010H 60 4000 High
F9003WLF3I-C 900 3600 TEAAC T5012H 60 4000 High
F9004WLF3I-C 900 1800 TEAAC T5012L 60 4000 High
F9006WLF3I-C 900 1200 TEAAC T6808L 60 4000 High
F9008WLF3I-C 900 900 TEAAC T6810L 60 4000 High
F9003WLFLI-C 900 3600 TEAAC T5012H 60 4000 High
F9004WLFLI-C 900 1800 TEAAC T5012L 60 4000 High
F9006WLFLI-C 900 1200 TEAAC T6808L 60 4000 High
F9008WLFLI-C 900 900 TEAAC T6810L 60 4000 High
9005TCAL11E-A 900 1800 TEAAC 5812US 60 4000 High
9005TCAL11E-C 900 1800 TEAAC 5812US 60 4000 High
9003TCAL11F-A 900 3600 TEAAC 5812USS 60 4000 High
9003TCAL11F-C 900 3600 TEAAC 5812USS 60 4000 High
9007TCAL11E-C 900 1200 TEAAC 6810/11/12US 60 4000 High
9005TCQL11E-A 900 1800 TEAAC 5812US 60 4000 High
9005TCQL11E-C 900 1800 TEAAC 5812US 60 4000 High
9003TCQL11F-A 900 3600 TEAAC 5812USS 60 4000 High
9003TCQL11F-C 900 3600 TEAAC 5812USS 60 4000 High
9007TCQL11E-C 900 1200 TEAAC 6810/11/12US 60 4000 High
F10003WLF3I-C 1,000 3600 TEAAC T5012H 60 4000 High
F10004WLF3I-C 1,000 1800 TEAAC T5012L 60 4000 High
F10008WLF3I-C 1,000 900 TEAAC T6812L 60 4000 High
F10004WLFLI-C 1,000 1800 TEAAC T5012 60 4000 High
F10003WLFLI-C 1,000 3600 TEAAC T5012H 60 4000 High
F10008WLFLI-C 1,000 900 TEAAC T6812L 60 4000 High
M205TCAL11E-A 1,000 1800 TEAAC 5812US 60 4000 High
M205TCAL11E-C 1,000 1800 TEAAC 5812US 60 4000 High
M203TCAL11F-A 1,000 3600 TEAAC 5812USS 60 4000 High
M203TCAL11F-C 1,000 3600 TEAAC 5812USS 60 4000 High
M207TCAL11E-C 1,000 1200 TEAAC 6810/11/12US 60 4000 High
M207TCQL11E-C 1,000 1200 TEAAC 6810/11/12US 60 4000 High
M205TCQL11E-A 1,000 1800 TEAAC 5812US 60 4000 High
M205TCQL11E-C 1,000 1800 TEAAC 5812US 60 4000 High
M203TCQL11F-A 1,000 3600 TEAAC 5812USS 60 4000 High
M203TCQL11F-C 1,000 3600 TEAAC 5812USS 60 4000 High
J1258WLF3I-C 1,250 900 TEAAC T8808L 60 4000 High
J1258WLFLI-C 1,250 900 TEAAC T8808L 60 4000 High
M253TCAL11F-A 1,250 3600 TEAAC 5812USS 60 4000 High
M253TCAL11F-C 1,250 3600 TEAAC 5812USS 60 4000 High
M257TCAL11E-C 1,250 1200 TEAAC 6810/11/12US 60 4000 High
M253TCQL11F-A 1,250 3600 TEAAC 5812USS 60 4000 High
M253TCQL11F-C 1,250 3600 TEAAC 5812USS 60 4000 High
M255TCQL11E-CF 1,250 1800 TEAAC 6810/11/12US 60 4000 High
M257TCQL11E-C 1,250 1200 TEAAC 6810/11/12US 60 4000 High
M253TCQL11F-CF 1,250 3600 TEAAC 6810/11/12USS 60 4000 High
J1508WLF3I-C 1,500 900 TEAAC T8808L 60 4000 High
J1503WLFLI-C 1,500 3600 TEAAC T6808H 60 4000 High
J1508WLFLI-C 1,500 900 TEAAC T8808L 60 4000 High
M305TCAL11E-C 1,500 1800 TEAAC 6810/11/12US 60 4000 High
M307TCAL11E-C 1,500 1200 TEAAC 6810/11/12US 60 4000 High
M305TCQL11E-C 1,500 1800 TEAAC 6810/11/12US 60 4000 High
M307TCQL11E-C 1,500 1200 TEAAC 6810/11/12US 60 4000 High
M303TCQL11F-C 1,500 3600 TEAAC 6810/11/12USS 60 4000 High
J1758WLFLI-C 1,750 900 TEAAC R1083J 60 4000 High
M357TCAL11E-C 1,750 1200 TEAAC 6812/13US 60 4000 High
J1758WLF3I-C 1,750 900 TEAAC R1083J 60 4000 High
M355TCAL11E-C 1,750 1800 TEAAC 6810/11/12US 60 4000 High
M355TCQL11E-C 1,750 1800 TEAAC 6810/11/12US 60 4000 High
M353TCQL11F-C 1,750 3600 TEAAC 6810/11/12USS 60 4000 High
M357TCQL11E-C 1,750 1200 TEAAC 6812/13US 60 4000 High
M405TCAL11E-C 2,000 1800 TEAAC 6810/11/12US 60 4000 High
J2008WLF3I-C 2,000 900 TEAAC R1083J 60 4000 High
J2006WLF3I-C 2,000 1200 TEAAC T6812L 60 4000 High
J2006WLFLI-C 2,000 1200 TEAAC T6812L 60 4000 High
M405TCQL11E-C 2,000 1800 TEAAC 6810/11/12US 60 4000 High
J2008WLFLI-C 2,000 900 TEAAC R1083J 60 4000 High
J2258WLF3I-C 2,250 900 TEAAC R1085E 60 4000 High
J2256WLF3I-C 2,250 1200 TEAAC T8808L 60 4000 High
J2256WLFLI-C 2,250 1200 TEAAC T8808L 60 4000 High
M455TCAL11E-C 2,250 1800 TEAAC 6810/11/12US 60 4000 High
M455TCQL11E-C 2,250 1800 TEAAC 6810/11/12US 60 4000 High
M453TCQL11F-C 2,250 3600 TEAAC 6812/13US 60 4000 High
J2258WLFLI-C 2,250 900 TEAAC R1085E 60 4000 High
M505TCAL11E-C 2,500 1800 TEAAC 6812/13US 60 4000 High
J2508WLF3I-C 2,500 900 TEAAC R1085E 60 4000 High
J2506WLF3I-C 2,500 1200 TEAAC T8808L 60 4000 High
J2506WLFLI-C 2,500 1200 TEAAC T8808L 60 4000 High
M503TCQL11F-C 2,500 3600 TEAAC 450-1600 60 4000 High
M505TCQL11E-C 2,500 1800 TEAAC 6812/13US 60 4000 High
J2508WLFLI-C 2,500 900 TEAAC R1085E 60 4000 High
J3006WLF3I-C 3,000 1200 TEAAC R1083J 60 4000 High
J3008WLF3I-C 3,000 900 TEAAC R1087J 60 4000 High
J3003WLFLI-C 3,000 3600 TEAAC T8810H 60 4000 High
M605TCAL11E-C 3,000 1800 TEAAC 450-1600 60 4000 High
M605TCQL11E-C 3,000 1800 TEAAC 450-1600 60 4000 High
J3006WLFLI-C 3,000 1200 TEAAC R1083J 60 4000 High
J3008WLFLI-C 3,000 900 TEAAC R1087J 60 4000 High
J3506WLF3I-C 3,500 1200 TEAAC R1085E 60 4000 High
J3508WLF3I-C 3,500 900 TEAAC R1087E 60 4000 High
J3504WLF3I-C 3,500 1800 TEAAC T8810L 60 4000 High
J3503WLFLI-C 3,500 3600 TEAAC T8810H 60 4000 High
J3504WLFLI-C 3,500 1800 TEAAC T8810L 60 4000 High
J3506WLFLI-C 3,500 1200 TEAAC R1085E 60 4000 High
J3508WLFLI-C 3,500 900 TEAAC R1087E 60 4000 High
J4006WLF3I-C 4,000 1200 TEAAC R1087E 60 4000 High
J4008WLF3I-C 4,000 900 TEAAC R1089E 60 4000 High
J4004WLF3I-C 4,000 1800 TEAAC T8810L 60 4000 High
J4004WLFLI-C 4,000 1800 TEAAC T8810L 60 4000 High
J4003WLFLI-C 4,000 3600 TEAAC T8810T 60 4000 High
J4006WLFLI-C 4,000 1200 TEAAC R1087E 60 4000 High
J4008WLFLI-C 4,000 900 TEAAC R1089E 60 4000 High
J4504WLF3I-C 4,500 1800 TEAAC R1085E 60 4000 High
J4506WLF3I-C 4,500 1200 TEAAC R1087E 60 4000 High
J4508WLF3I-C 4,500 900 TEAAC R1089E 60 4000 High
J4504WLFLI-C 4,500 1800 TEAAC R1087E 60 4000 High
J4506WLFLI-C 4,500 1200 TEAAC R1087E 60 4000 High
J4508WLFLI-C 4,500 900 TEAAC R1089E 60 4000 High
J5004WLF3I-C 5,000 1800 TEAAC R1087E 60 4000 High
J5006WLF3I-C 5,000 1200 TEAAC R1089E 60 4000 High
J5004WLFLI-C 5,000 1800 TEAAC R1087E 60 4000 High
J5006WLFLI-C 5,000 1200 TEAAC R1089E 60 4000 High
J6004WLF3I-C 6,000 1800 TEAAC R1087E 60 4000 High
J6006WLF3I-C 6,000 1200 TEAAC R1089E 60 4000 High
J6004WLFLI-C 6,000 1800 TEAAC R1087E 60 4000 High
J6006WLFLI-C 6,000 1200 TEAAC R1089E 60 4000 High
J7004WLF3I-C 7,000 1800 TEAAC R1089E 60 4000 High
J7004WLFLI-C 7,000 1800 TEAAC R1089E 60 4000 High
J8004WLF3I-C 8,000 1800 TEAAC R1089E 60 4000 High
J8004WLFLI-C 8,000 1800 TEAAC R1089E 60 4000 High

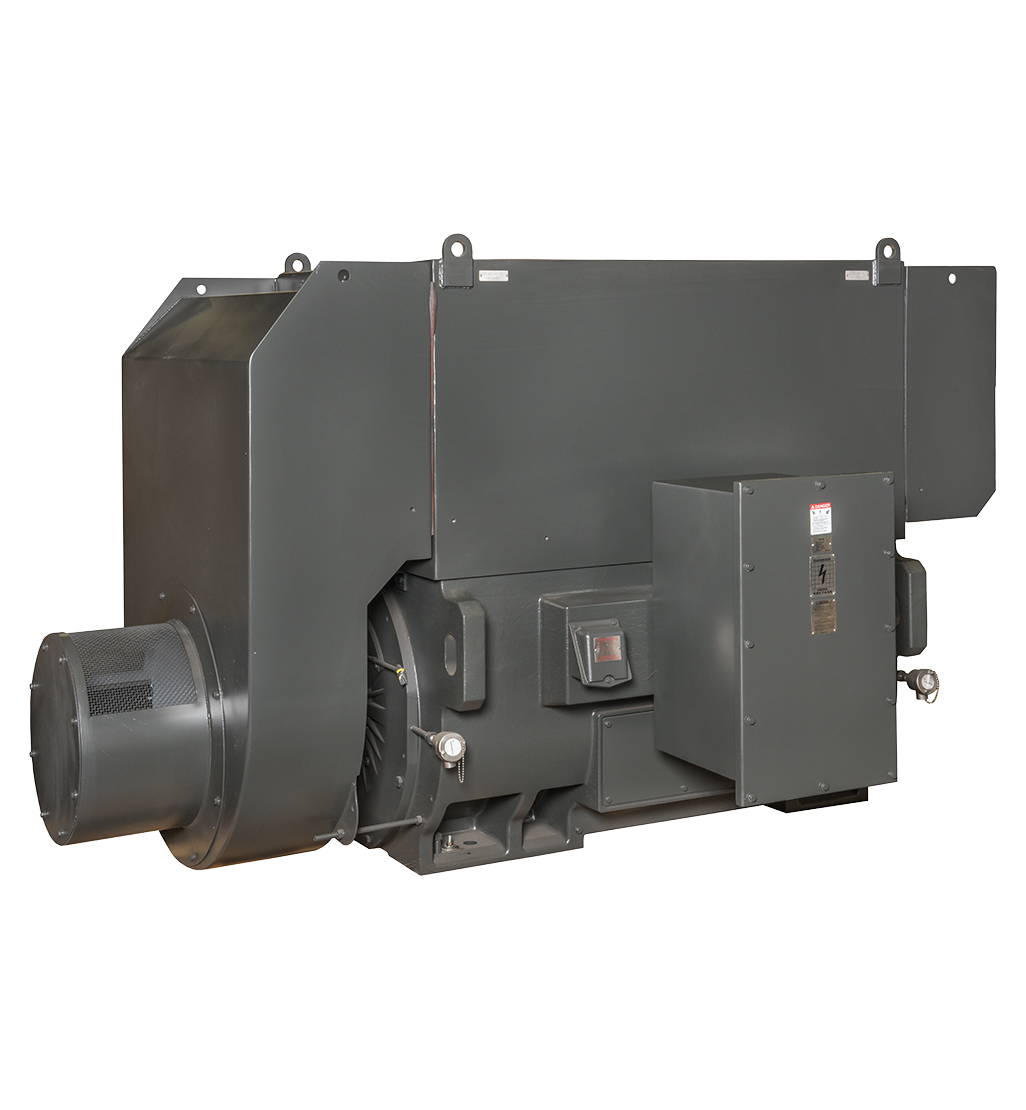

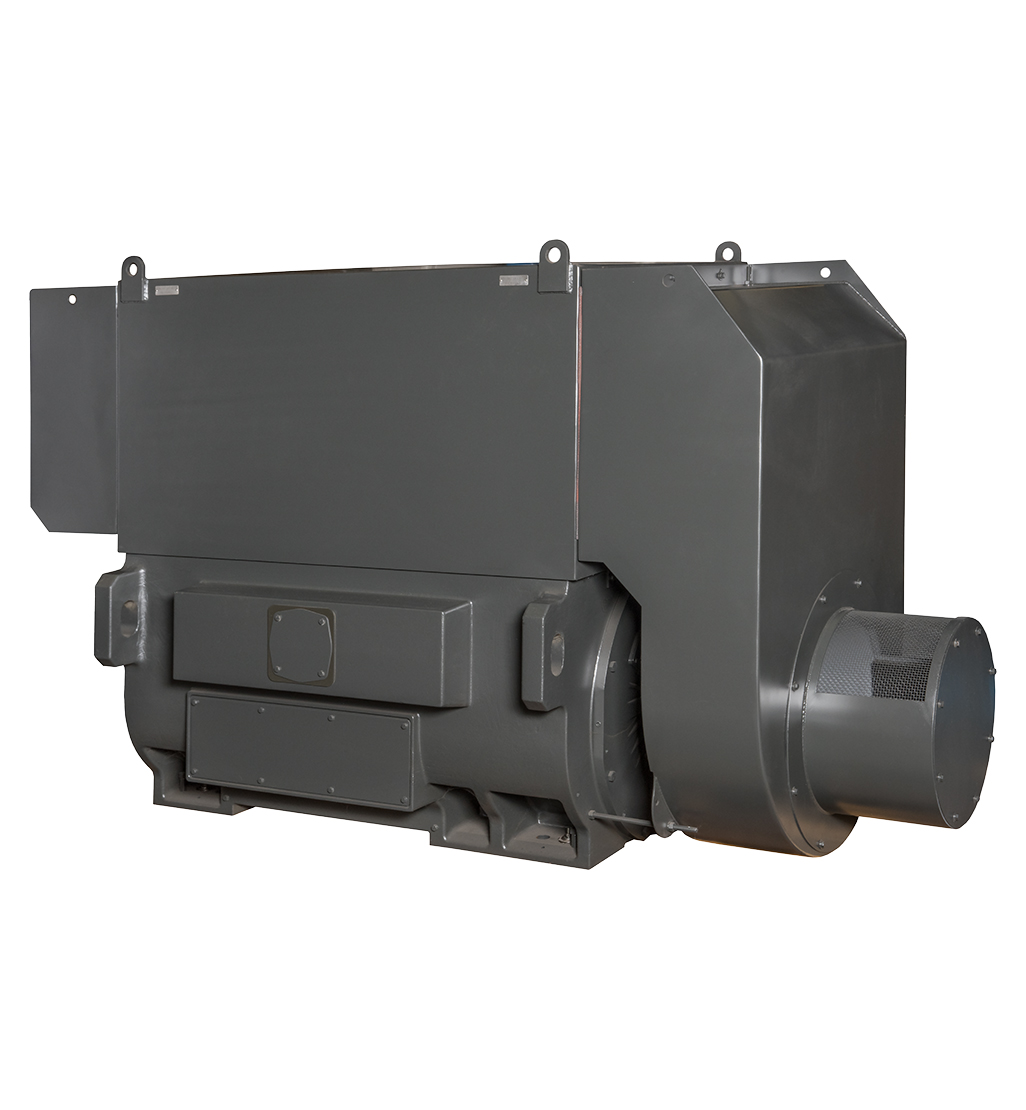

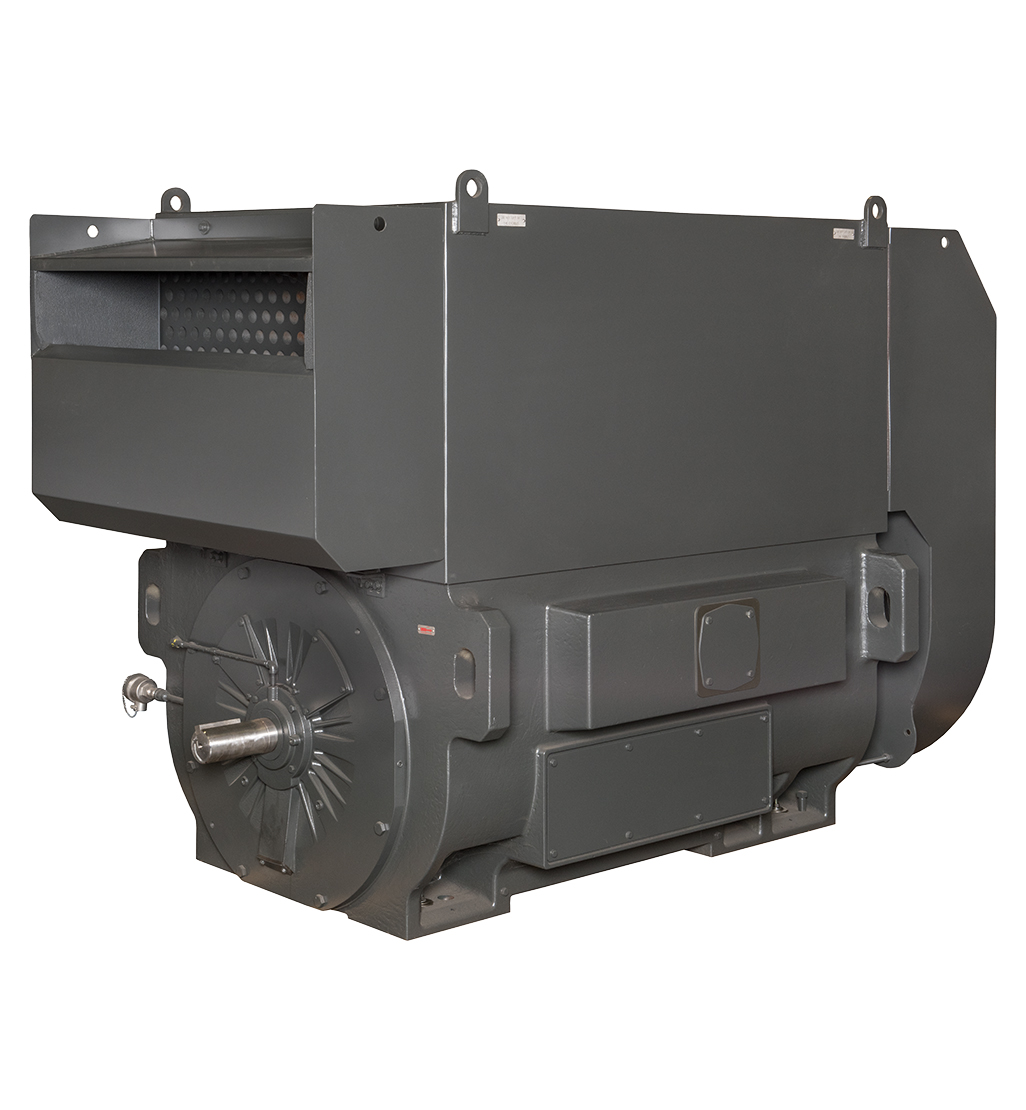

Product Image Gallery
