Type1 Light
Standard Sequence control module
Standard Sequence control module

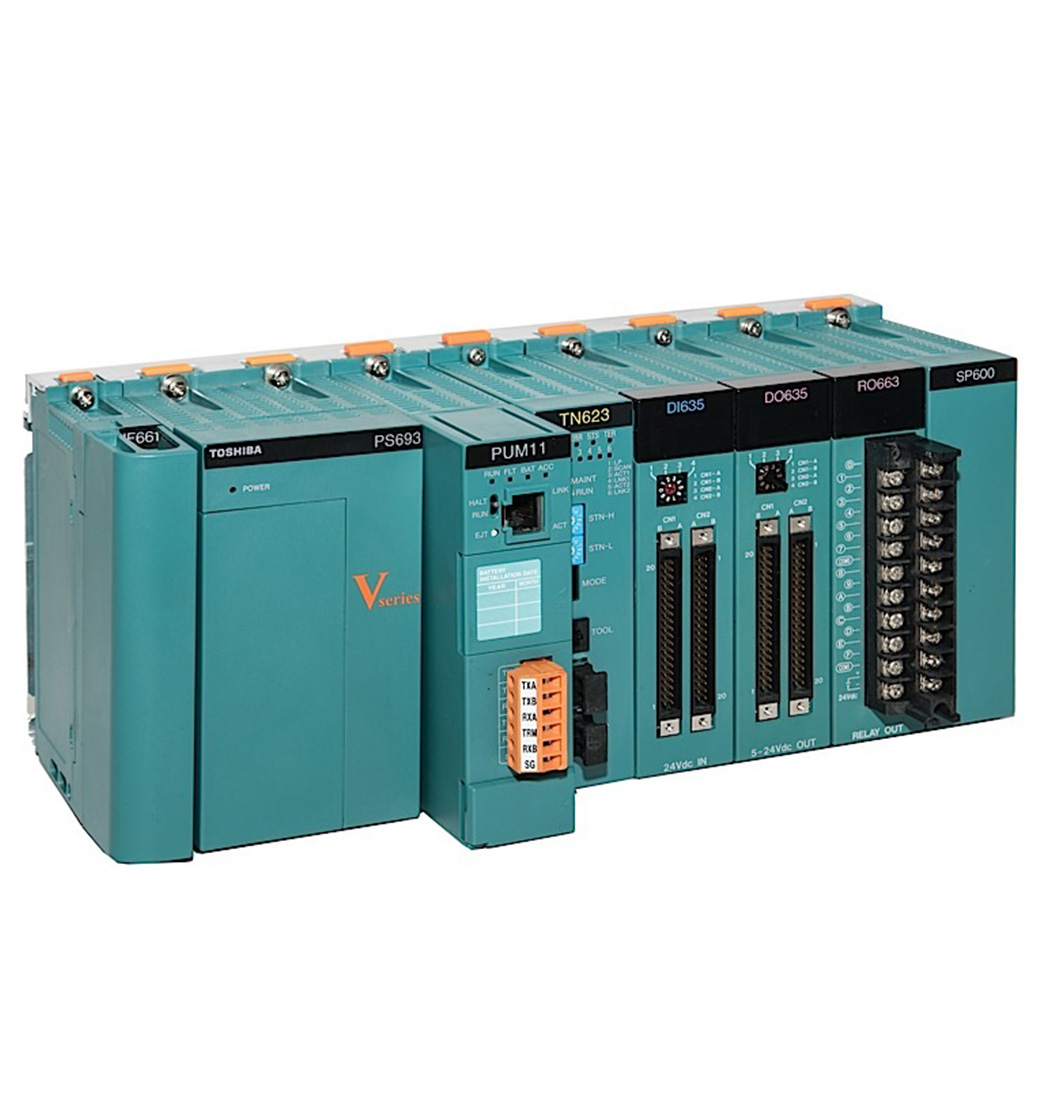

The Type1 Light S CPU mounts in a standard V2000
I/O rack (3 I/O, 5 I/O or 8 I/O racks are available). It
can replace a S2E module. The Type1 Light S does
not support racks with station bus, or I/O modules
that require a station bus.
The Type1 Light S CPU has both a RS485 port and an Ethernet port which supports Toshiba’s ASCII computer link protocol. This allows connection by any HMI or SCADA software that has the Toshiba computer link driver. Also ModbusTCP/IP, Modbus RTU and direct communication with Toshiba LV VFDs
Quick overview
- CPU module: PUM11
- Program capacity: 32K steps
- Number of I/O connections: Up to 32
- External I/F: Ethernet RS485 (computer link, Modbus RTU, VFD driver) USB (for connecting tool)
High-performance Sequence control module
The Unified Controller nv seriesTM TC-netTM I/O is built-in to the Type1 Light H CPU. It can be applied to I/O systems to provide enhanced performance. The master station, built into the CPU module, enables direct connection of the TC-netTM I/O loop. A 4 km-long remote I/O system than can be installed at low cost. The connected I/O can be selected from Integrated Controller V2000 series I/O (G2 I/O) or Unified Controller nv seriesTM TC-netTM I/O.
Remote I/O configuration
The system collects and controls remote signals in real time. The TC-netTM I/O is a high-speed, robust I/O system for communication by optical cable with strong resistance to electrical noise.
Quick overview
- CPU module: PUM12
- Program capacity: 64K steps
- TC-netTM I/O Loop: 1 loop
- Number of TC-netTM I/O connections: up to 64
- External I/F: Ethernet
- USB (for connecting tools)
Redundant sequence control module
The Type1 Light D CPU supports redundancy. Redundancy enables greater productivity by providing the highest system availability. With a program capacity of 128K steps and the ability to connect up to 192 I/O modules, the Type1 Light D is ideal for critical medium and large-scale systems. The module can also be used in a single module configuration.
High performance and critical system reliability
Automatic switching to the secondary CPU occurs if a problem is detected in the primary CPU.
Quick overview
- CPU module: PUM14
- Program capacity: 128K steps
- TC-netTM I/O Loop: 1 loop
- Number of TC-netTM I/O connections: up to 192
- External I/F: Ethernet, USB (for connecting tools)
