125VDC SCiB ESS
The Toshiba SCiB Energy Storage System (ESS) utilizes Lithium Titanium Oxide Battery chemistry to provide safe and reliable backup for UPS applications. The SCiB Lithium Titanate Oxide (LTO) topology alongside state of the art monitoring devices greatly reduce the potential for thermal runaway suffered by other lithium chemistries. Additionally, the Toshiba SCiB ESS requires minimal maintenance and has a service life of 20+ years, often lasting longer than the UPS itself. The enclosure is lighter and more compact than that of lead acid or other lithium chemistries, thereby freeing up space to maximize IT data revenue.
Toshiba’s 125VDC SCiB ESS utilizes the flexibility of rackmount enclosures, providing effective ranges of runtime and capacity options. This system is a direct replacement for VRLA rackmount energy storage, making it ideal for the Telecommunications, Oil and Gas, and Utility
industries.

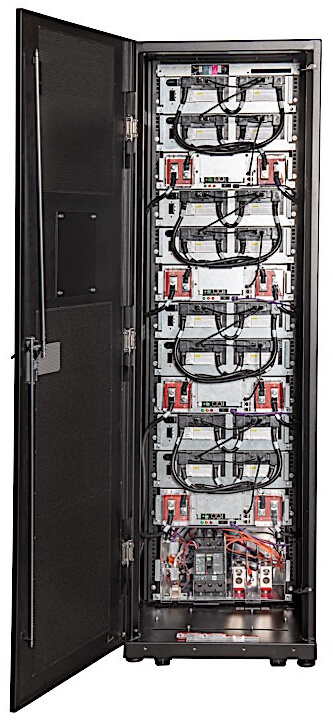

Each rack system can be configured to contain from one to four strings of Toshiba SCiB 2P12S modules with individual controller trays, which establishes redundancy within the cabinet for critical load applications.
For Toshiba UPS applications, the 125VDC ESS is compatible with the 5000 Series 3P1 UPS or as a standalone cabinet for DC Load applications. The 125VDC ESS is an environmentally resilient energy storage companion designed for industrial applications.
Features
- Long Cycle-Life: 20 times greater than valve-regulated lead-acid (VRLA) lifetime
- Long Shelf Life: Maintains over 90% charge for over one year in storage environment of -30°C to 45°C
- Toshiba Quality: SCiB cells, modules, and cabinets are all manufactured by Toshiba
- Best-in-Class 12-Year Warranty
- Superior Safety: Resistant to dendritic growth over 10,000 cycles at 100% SOC (state of charge)
- Space and Volume Efficient: Half the volume and weight of VRLA
- Cable routing channels on the top, bottom, and side of the unit make parallel connections with the UPS convenient and simple.
- Communication between cabinets is convenient and straightforward utilizing CAT5 cables to transmit system information, notifying each cabinet of the full system status.
- An included DC breaker eliminates the need for separate overcurrent protection, making the SCiB ESS a plug-and-play feature even in the most restrictive UPS applications.
